SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge T150 (Intel Xeon E-2388G 3.20 GHz) | SPECpower_ssj2008 = 8,259 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Mar 25, 2024 |
| Hardware Availability: | Oct-2021 | Software Availability: | Jan-2023 | Publication: | Apr 26, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

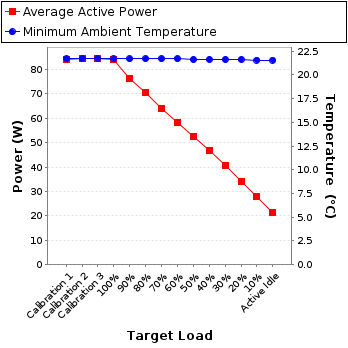

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 84.0 | 21.7 |
| Calibration 2 | 84.6 | 21.8 |
| Calibration 3 | 84.6 | 21.8 |
| 100% | 84.1 | 21.7 |
| 90% | 76.5 | 21.7 |
| 80% | 70.4 | 21.7 |
| 70% | 63.9 | 21.7 |
| 60% | 58.4 | 21.7 |
| 50% | 52.5 | 21.6 |
| 40% | 46.7 | 21.6 |
| 30% | 40.6 | 21.6 |
| 20% | 34.2 | 21.6 |
| 10% | 28.0 | 21.6 |
| Active Idle | 21.2 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91K308530 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T75067 |
| Date of Calibration: | 16-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

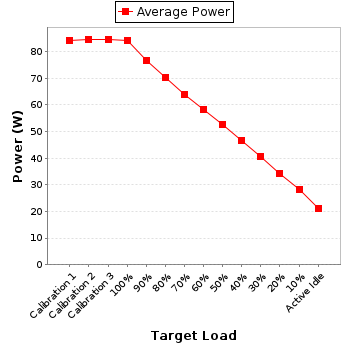

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 0.443 | 0.5 | 0.918 | 84.0 | 0.4% |
| Calibration 2 | 207 | 300.0 | 0.446 | 0.5 | 0.918 | 84.6 | 0.4% |
| Calibration 3 | 207 | 300.0 | 0.445 | 0.5 | 0.918 | 84.6 | 0.4% |
| 100% | 207 | 300.0 | 0.444 | 0.5 | 0.917 | 84.1 | 0.4% |
| 90% | 207 | 300.0 | 0.412 | 0.5 | 0.898 | 76.5 | 0.4% |
| 80% | 207 | 300.0 | 0.387 | 0.5 | 0.880 | 70.4 | 0.5% |
| 70% | 207 | 300.0 | 0.361 | 0.5 | 0.856 | 63.9 | 0.5% |
| 60% | 207 | 300.0 | 0.339 | 0.5 | 0.832 | 58.4 | 0.5% |
| 50% | 207 | 300.0 | 0.316 | 0.5 | 0.801 | 52.5 | 0.6% |
| 40% | 207 | 300.0 | 0.296 | 0.5 | 0.764 | 46.7 | 0.6% |
| 30% | 207 | 300.0 | 0.275 | 0.5 | 0.714 | 40.6 | 0.7% |
| 20% | 207 | 300.0 | 0.255 | 0.5 | 0.648 | 34.2 | 0.8% |
| 10% | 207 | 300.0 | 0.238 | 0.2 | 0.569 | 28.0 | 0.7% |
| Active Idle | 207 | 300.0 | 0.227 | 0.2 | 0.451 | 21.2 | 0.9% |
