SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL380a Gen11 | SPECpower_ssj2008 = 14,827 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 16, 2024 |
| Hardware Availability: | Feb-2024 | Software Availability: | Jan-2024 | Publication: | May 2, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

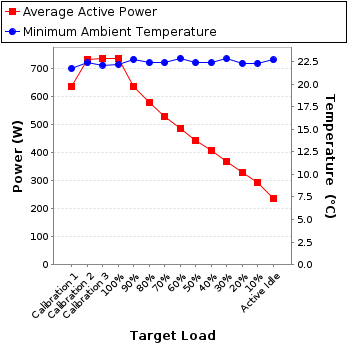

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 637 | 21.8 |
| Calibration 2 | 730 | 22.4 |
| Calibration 3 | 735 | 22.1 |
| 100% | 736 | 22.2 |
| 90% | 635 | 22.8 |
| 80% | 577 | 22.4 |
| 70% | 530 | 22.4 |
| 60% | 487 | 22.9 |
| 50% | 445 | 22.4 |
| 40% | 406 | 22.4 |
| 30% | 369 | 22.8 |
| 20% | 330 | 22.3 |
| 10% | 294 | 22.3 |
| Active Idle | 235 | 22.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HC75N-60-1 |
| Date of Calibration: | 16-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

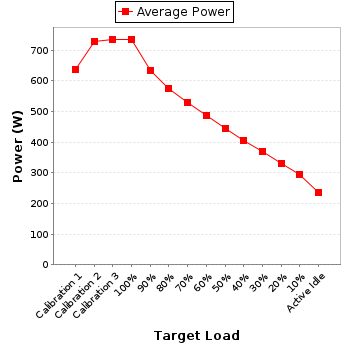

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 3.21 | 5.0 | 0.946 | 637 | 0.5% |
| Calibration 2 | 211 | 300.0 | 3.60 | 5.0 | 0.961 | 730 | 0.4% |
| Calibration 3 | 211 | 300.0 | 3.62 | 5.0 | 0.961 | 735 | 0.4% |
| 100% | 211 | 300.0 | 3.63 | 5.0 | 0.961 | 736 | 0.4% |
| 90% | 211 | 300.0 | 3.17 | 5.0 | 0.949 | 635 | 0.5% |
| 80% | 211 | 300.0 | 2.91 | 5.0 | 0.939 | 577 | 0.5% |
| 70% | 211 | 300.0 | 2.70 | 5.0 | 0.929 | 530 | 0.5% |
| 60% | 211 | 300.0 | 2.51 | 5.0 | 0.918 | 487 | 0.5% |
| 50% | 211 | 300.0 | 2.33 | 5.0 | 0.903 | 445 | 0.6% |
| 40% | 211 | 300.0 | 2.17 | 5.0 | 0.888 | 406 | 0.6% |
| 30% | 211 | 300.0 | 2.01 | 5.0 | 0.868 | 369 | 0.7% |
| 20% | 211 | 300.0 | 1.85 | 5.0 | 0.844 | 330 | 0.7% |
| 10% | 211 | 300.0 | 1.71 | 5.0 | 0.815 | 294 | 0.8% |
| Active Idle | 211 | 300.0 | 1.49 | 5.0 | 0.748 | 235 | 1.0% |
