SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Supermicro AS-5126GS-TNRT | SPECpower_ssj2008 = 34,469 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Sep 22, 2024 |
| Hardware Availability: | Oct-2024 | Software Availability: | Oct-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

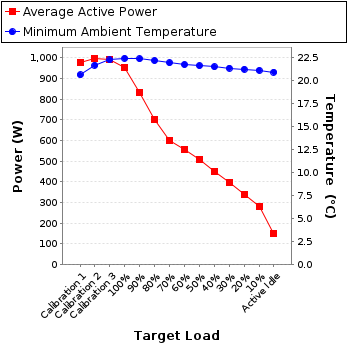

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 979 | 20.6 |
| Calibration 2 | 998 | 21.7 |
| Calibration 3 | 993 | 22.2 |
| 100% | 952 | 22.4 |
| 90% | 831 | 22.4 |
| 80% | 700 | 22.2 |
| 70% | 603 | 21.9 |
| 60% | 557 | 21.8 |
| 50% | 507 | 21.6 |
| 40% | 453 | 21.5 |
| 30% | 397 | 21.4 |
| 20% | 338 | 21.2 |
| 10% | 280 | 21.1 |
| Active Idle | 151 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C3RF27027E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | OCL-230203F01008 |
| Date of Calibration: | 03-Feb-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |

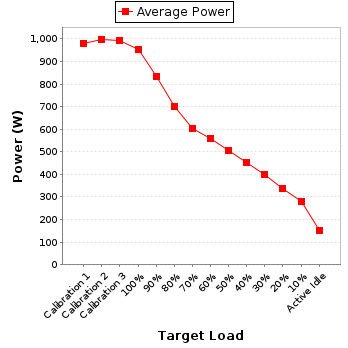

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 227 | 300.0 | 4.34 | 5.0 | 0.995 | 979 | 0.3% |
| Calibration 2 | 226 | 300.0 | 4.43 | 5.0 | 0.995 | 998 | 0.3% |
| Calibration 3 | 226 | 300.0 | 4.42 | 5.0 | 0.995 | 993 | 0.3% |
| 100% | 225 | 300.0 | 4.25 | 5.0 | 0.995 | 952 | 0.3% |
| 90% | 225 | 300.0 | 3.74 | 5.0 | 0.987 | 831 | 0.3% |
| 80% | 225 | 300.0 | 3.16 | 5.0 | 0.985 | 700 | 0.4% |
| 70% | 225 | 300.0 | 2.70 | 5.0 | 0.991 | 603 | 0.4% |
| 60% | 225 | 300.0 | 2.50 | 5.0 | 0.990 | 557 | 0.4% |
| 50% | 225 | 300.0 | 2.28 | 5.0 | 0.989 | 507 | 0.4% |
| 40% | 225 | 300.0 | 2.04 | 2.0 | 0.986 | 453 | 0.3% |
| 30% | 225 | 300.0 | 1.79 | 2.0 | 0.983 | 397 | 0.3% |
| 20% | 225 | 300.0 | 1.53 | 2.0 | 0.979 | 338 | 0.3% |
| 10% | 225 | 300.0 | 1.28 | 1.0 | 0.972 | 280 | 0.3% |
| Active Idle | 225 | 300.0 | 0.719 | 1.0 | 0.931 | 151 | 0.4% |
