SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL385 Gen11 | SPECpower_ssj2008 = 33,263 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Sep 22, 2024 |
| Hardware Availability: | Jan-2025 | Software Availability: | Jul-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

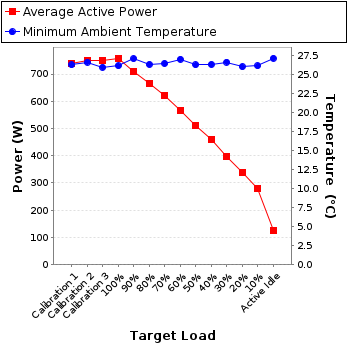

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 740 | 26.3 |
| Calibration 2 | 748 | 26.7 |
| Calibration 3 | 750 | 26.0 |
| 100% | 758 | 26.2 |
| 90% | 710 | 27.1 |
| 80% | 664 | 26.4 |
| 70% | 620 | 26.5 |
| 60% | 565 | 27.1 |
| 50% | 511 | 26.3 |
| 40% | 458 | 26.4 |
| 30% | 398 | 26.7 |
| 20% | 339 | 26.1 |
| 10% | 279 | 26.2 |
| Active Idle | 124 | 27.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB47167 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H16YM-60-1 |
| Date of Calibration: | 06-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

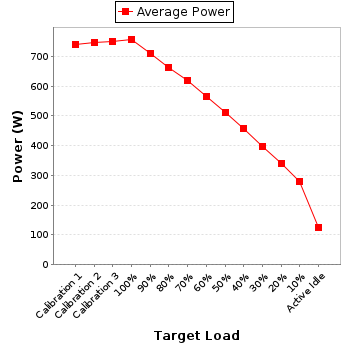

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 3.58 | 5.0 | 0.991 | 740 | 0.4% |
| Calibration 2 | 209 | 300.0 | 3.62 | 5.0 | 0.991 | 748 | 0.4% |
| Calibration 3 | 209 | 300.0 | 3.63 | 5.0 | 0.991 | 750 | 0.4% |
| 100% | 208 | 300.0 | 3.67 | 5.0 | 0.991 | 758 | 0.4% |
| 90% | 208 | 300.0 | 3.45 | 5.0 | 0.990 | 710 | 0.4% |
| 80% | 209 | 300.0 | 3.21 | 5.0 | 0.989 | 664 | 0.4% |
| 70% | 209 | 300.0 | 3.00 | 5.0 | 0.987 | 620 | 0.4% |
| 60% | 209 | 300.0 | 2.75 | 5.0 | 0.985 | 565 | 0.5% |
| 50% | 209 | 300.0 | 2.49 | 5.0 | 0.982 | 511 | 0.5% |
| 40% | 209 | 300.0 | 2.23 | 5.0 | 0.980 | 458 | 0.5% |
| 30% | 209 | 300.0 | 1.95 | 5.0 | 0.975 | 398 | 0.6% |
| 20% | 209 | 300.0 | 1.67 | 2.0 | 0.969 | 339 | 0.4% |
| 10% | 209 | 300.0 | 1.39 | 2.0 | 0.960 | 279 | 0.4% |
| Active Idle | 209 | 300.0 | 0.693 | 2.0 | 0.857 | 124 | 0.8% |
