Quanta Computer Inc. S44NL-1U ssj_ops@100% = 291,962
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Sep 21, 2024
Hardware Availability: Oct-2024 Software Availability: Sep-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     294,120
Calibration 2     293,669
Calibration 3     292,975
ssj_ops@calibrated=293,322
100% 99.5% 293,322 291,962
90% 89.9% 263,990 263,812
80% 79.5% 234,658 233,045
70% 69.9% 205,325 204,936
60% 60.1% 175,993 176,400
50% 49.9% 146,661 146,264
40% 40.2% 117,329 117,976
30% 30.1% 87,997 88,176
20% 19.9% 58,664 58,343
10% 10.1% 29,332 29,745
Active Idle   0 0

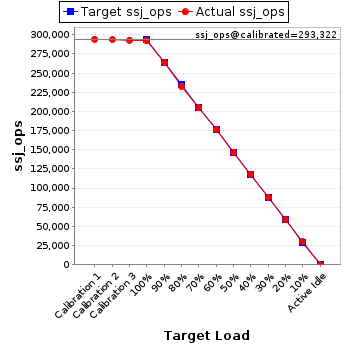

Graph of results
System Under Test
Set: 'S44NL-1U'
Set Identifier: S44NL-1U
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: S44NL-1U
Form Factor: 1U
CPU Name: AMD EPYC 9755 2.7GHz
CPU Characteristics: 128 core, 2.7GHz, 512MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 128 cores, 1 chip, 128 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 512 MB I+D on chip per chip, 32 MB shared/8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 1Rx8 PC5-5600-R; slots A1, B1, C1, D1, E1, F1, G1 ,H1, I1, J1, K1, L1 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: ACBEL Quanta P/N:AF800C00042
Disk Drive: 1 x 512GB M.2 Daughter card, Quanta P/N:ABS0512G358
Disk Controller: PCI-e controller
# and type of Network Interface Cards (NICs) Installed: 1 x Mellanox 25Gb, 2-port, Quanta P/N:ADPC6311000
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 25000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter Evaluation
OS Version: Version 21H2 (OS Build 20348.2527)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
JVM Command-line Options: -server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-15] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 3B02
Management Firmware Version: 5.02
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows (KB5039227)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 21,399,629 2,030
Payment 21,399,627
Order Status 2,139,961
Delivery 2,139,964
Stock Level 2,139,964
Customer Report 21,399,622
Calibration 2 New Order 21,373,224 2,030
Payment 21,373,223
Order Status 2,137,321
Delivery 2,137,323
Stock Level 2,137,322
Customer Report 21,373,222
Calibration 3 New Order 21,317,447 2,030
Payment 21,317,449
Order Status 2,131,744
Delivery 2,131,745
Stock Level 2,131,745
Customer Report 21,317,447
100% 99.5% New Order 21,239,394 2,030
Payment 21,239,390
Order Status 2,123,939
Delivery 2,123,940
Stock Level 2,123,941
Customer Report 21,239,400
90% 89.9% New Order 19,188,061 2,030
Payment 19,188,067
Order Status 1,918,807
Delivery 1,918,807
Stock Level 1,918,808
Customer Report 19,188,071
80% 79.5% New Order 16,948,895 2,028
Payment 16,948,887
Order Status 1,694,889
Delivery 1,694,889
Stock Level 1,694,889
Customer Report 16,948,890
70% 69.9% New Order 14,905,316 2,028
Payment 14,905,320
Order Status 1,490,530
Delivery 1,490,531
Stock Level 1,490,531
Customer Report 14,905,312
60% 60.1% New Order 12,830,101 2,028
Payment 12,830,098
Order Status 1,283,010
Delivery 1,283,010
Stock Level 1,283,010
Customer Report 12,830,097
50% 49.9% New Order 10,637,422 2,026
Payment 10,637,424
Order Status 1,063,741
Delivery 1,063,742
Stock Level 1,063,744
Customer Report 10,637,423
40% 40.2% New Order 8,580,523 2,030
Payment 8,580,521
Order Status 858,052
Delivery 858,053
Stock Level 858,052
Customer Report 8,580,524
30% 30.1% New Order 6,413,170 2,032
Payment 6,413,166
Order Status 641,316
Delivery 641,319
Stock Level 641,320
Customer Report 6,413,176
20% 19.9% New Order 4,243,331 2,032
Payment 4,243,331
Order Status 424,333
Delivery 424,332
Stock Level 424,333
Customer Report 4,243,340
10% 10.1% New Order 2,163,334 2,032
Payment 2,163,328
Order Status 216,334
Delivery 216,337
Stock Level 216,332
Customer Report 2,163,335
Active Idle New Order 0 2,032
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
