Lenovo Global Technology Think System SR675 V3 SPECpower_ssj2008 = 40,278 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Nov 1, 2024
Hardware Availability: Feb-2025 Software Availability: Sep-2024 Publication: Nov 19, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 710 22.6
Calibration 2 716 22.5
Calibration 3 717 22.5
100% 714 22.6
90% 641 22.6
80% 600 22.7
70% 563 22.7
60% 522 22.7
50% 478 22.7
40% 433 22.8
30% 385 22.8
20% 337 22.8
10% 285 22.8
Active Idle 161 22.8

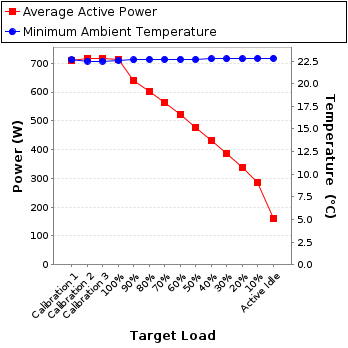

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB
Calibration Label: 1GA24011968-0004
Date of Calibration: 26-Sep-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1 PSU 2 PSU 3 PSU 4
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 3.29 10.0 0.985 710 0.3%
Calibration 2 219 300.0 3.32 10.0 0.984 716 0.3%
Calibration 3 219 300.0 3.33 10.0 0.985 717 0.3%
100% 219 300.0 3.31 10.0 0.984 714 0.3%
90% 219 300.0 2.98 10.0 0.981 641 0.4%
80% 219 300.0 2.80 10.0 0.978 600 0.4%
70% 219 300.0 2.64 5.0 0.975 563 0.3%
60% 219 300.0 2.45 5.0 0.971 522 0.3%
50% 219 300.0 2.25 5.0 0.967 478 0.3%
40% 219 300.0 2.06 5.0 0.960 433 0.3%
30% 219 300.0 1.85 5.0 0.951 385 0.4%
20% 219 300.0 1.64 5.0 0.940 337 0.4%
10% 219 300.0 1.41 5.0 0.919 285 0.4%
Active Idle 219 300.0 0.905 5.0 0.809 161 0.6%
Power details for pwr1
