SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX1330 M6 | SPECpower_ssj2008 = 12,890 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Mar 23, 2025 |
| Hardware Availability: | Apr-2025 | Software Availability: | Jan-2024 | Publication: | Apr 9, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

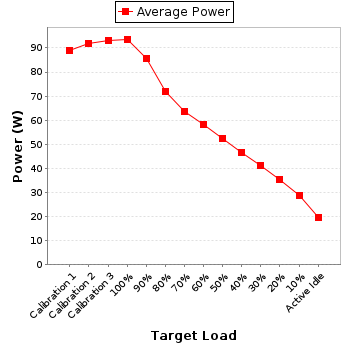

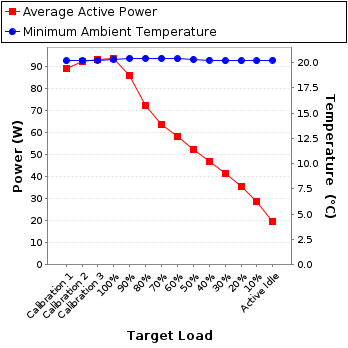

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 89.1 | 20.2 |
| Calibration 2 | 92.0 | 20.2 |
| Calibration 3 | 93.2 | 20.2 |
| 100% | 93.6 | 20.3 |
| 90% | 85.6 | 20.4 |
| 80% | 72.0 | 20.4 |
| 70% | 63.7 | 20.4 |
| 60% | 58.1 | 20.4 |
| 50% | 52.2 | 20.3 |
| 40% | 46.7 | 20.2 |
| 30% | 41.2 | 20.2 |
| 20% | 35.3 | 20.2 |
| 10% | 28.8 | 20.2 |
| Active Idle | 19.7 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY246003096 |
| Date of Calibration: | 18-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300.0 | 0.531 | 1.0 | 0.825 | 89.1 | 0.3% |
| Calibration 2 | 203 | 300.0 | 0.545 | 1.0 | 0.831 | 92.0 | 0.3% |
| Calibration 3 | 203 | 300.0 | 0.551 | 1.0 | 0.833 | 93.2 | 0.3% |
| 100% | 203 | 300.0 | 0.553 | 1.0 | 0.833 | 93.6 | 0.3% |
| 90% | 203 | 300.0 | 0.514 | 1.0 | 0.822 | 85.6 | 0.3% |
| 80% | 203 | 300.0 | 0.444 | 1.0 | 0.799 | 72.0 | 0.4% |
| 70% | 203 | 300.0 | 0.402 | 1.0 | 0.779 | 63.7 | 0.4% |
| 60% | 203 | 300.0 | 0.377 | 1.0 | 0.759 | 58.1 | 0.4% |
| 50% | 203 | 300.0 | 0.351 | 1.0 | 0.734 | 52.2 | 0.5% |
| 40% | 203 | 300.0 | 0.326 | 1.0 | 0.707 | 46.7 | 0.5% |
| 30% | 203 | 300.0 | 0.302 | 0.5 | 0.673 | 41.2 | 0.4% |
| 20% | 203 | 300.0 | 0.279 | 0.5 | 0.622 | 35.3 | 0.4% |
| 10% | 204 | 300.0 | 0.260 | 0.5 | 0.543 | 28.8 | 0.5% |
| Active Idle | 204 | 300.0 | 0.241 | 0.5 | 0.401 | 19.7 | 0.7% |
