SPECpower_ssj2008 Host 'WIN-PEKNURDBKJA' Performance Report

SPECpower_ssj2008

Host 'WIN-PEKNURDBKJA' Performance Report

Fujitsu PRIMERGY TX1330 M6			ssj_ops@100% = 1,396,439 ssj_ops@100% per JVM = 174,555
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Mar 23, 2025
Hardware Availability:	Apr-2025	Software Availability:	Jan-2024	Publication:	Apr 9, 2025
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,400,411
Calibration 2			1,397,568
Calibration 3			1,396,767
ssj_ops@calibrated=1,397,168
100%	99.9%	1,397,168	1,396,439
90%	91.2%	1,257,451	1,274,884
80%	79.7%	1,117,734	1,113,458
70%	69.9%	978,017	977,230
60%	60.2%	838,301	840,844
50%	49.8%	698,584	696,455
40%	39.9%	558,867	557,626
30%	30.1%	419,150	419,872
20%	20.0%	279,434	279,401
10%	10.0%	139,717	140,376
Active Idle		0	0

System Under Test

Set: 'TX1330M6'

Set Identifier:	TX1330M6
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY TX1330 M6
Form Factor:	Tower
CPU Name:	Intel Xeon 6369P
CPU Characteristics:	8-Core, 3.30 GHz, 24 MB L3 Cache
CPU Frequency (MHz):	3300
CPU(s) Enabled:	8 cores, 1 chip, 8 cores/chip
Hardware Threads:	16 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	24 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	32
# and size of DIMM:	2 x 16384 MB
Memory Details:	2 x 16 GB 1Rx8 DDR5-4800 U ECC; slots 1A, 1B populated
Power Supply Quantity and Rating (W):	1 x 450
Power Supply Details:	Standard 450W Platinum PSU, S26113-E663-V50-1
Disk Drive:	1 x M.2 SSD 240GB, PY-MF24YN5
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x RJ45 with integrated LEDs for fixed onboard 1Gb LAN
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power saver
Operating System (OS):	Windows Server 2022 Standard
OS Version:	Version 21H2, OS build 20348.1906
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:FreqInlineSize=2500 -XX:MaxInlineSize=270 -XX:UseAVX=0 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:+UseAdaptiveSizePolicy -XX:+UseParallelGC -XX:+UseBiasedLocking -XX:InitialTenuringThreshold=12 -XX:LoopUnrollLimit=45 -XX:+OptimizeFill
JVM Affinity:	START /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000]
JVM Instances:	8
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	R2.1.0
Management Firmware Version:	2.58S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set the following options in BIOS.

"LAN 2 Controller = Disabled"
"ASPM Support = L1 Only"
"Hardware Prefetcher = Disabled"
"Adjacent Cache Line Prefetch = Disabled"
"Intel Virtualization Technology = Disabled"
"Turbo Mode = Disabled"
"Total Memory Encryption = Disabled"
"Package C-State limit = C7"
"DMI Max Link Speed = Gen1"
"Intel(R) Speed Shift Technology = Disabled"
"SATA Port X = Disabled"
"Legacy USB Support = Auto"
"Serial Port = Disabled"

Management Firmware Settings

None

System Under Test Notes

Set the following options in OS.

"Turn off hard disk after = 1 Minute"
"Minimum processor state = 0%"
"Turn off display after = 1 Minute"

Execute the following commands in OS.

"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFINCTHRESHOLD 95"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFINCTIME 50"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFINCTHRESHOLD 93"
"POWERCFG /S SCHEME_CURRENT"

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
SPECpower_ssj.props input.load_level.number_warehouses set to 16.
The system ROM used for this result contains Intel microcode version 000000002C010000 for the Intel Xeon 6369P processor.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-PEKNURDBKJA.001	176,207
WIN-PEKNURDBKJA.002	174,786
WIN-PEKNURDBKJA.003	174,437
WIN-PEKNURDBKJA.004	174,666
WIN-PEKNURDBKJA.005	174,569
WIN-PEKNURDBKJA.006	175,242
WIN-PEKNURDBKJA.007	173,992
WIN-PEKNURDBKJA.008	172,539
ssj_ops@100%	1,396,439
ssj_ops@100% per JVM	174,555

JVM 'WIN-PEKNURDBKJA.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			177,296
Calibration 2			176,812
Calibration 3			176,620
ssj_ops@calibrated=176,716
100%	99.7%	176,716	176,207
90%	91.6%	159,045	161,856
80%	78.9%	141,373	139,342
70%	69.5%	123,701	122,823
60%	60.5%	106,030	106,944
50%	50.3%	88,358	88,968
40%	40.1%	70,687	70,857
30%	30.2%	53,015	53,354
20%	20.3%	35,343	35,912
10%	10.2%	17,672	18,103
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			173,641
Calibration 2			174,814
Calibration 3			174,583
ssj_ops@calibrated=174,698
100%	100.1%	174,698	174,786
90%	90.9%	157,229	158,865
80%	80.3%	139,759	140,267
70%	69.8%	122,289	122,022
60%	60.1%	104,819	104,935
50%	50.1%	87,349	87,546
40%	40.2%	69,879	70,310
30%	30.5%	52,410	53,328
20%	20.0%	34,940	34,870
10%	9.8%	17,470	17,208
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			175,698
Calibration 2			174,676
Calibration 3			174,206
ssj_ops@calibrated=174,441
100%	100.0%	174,441	174,437
90%	90.8%	156,997	158,399
80%	79.7%	139,553	139,110
70%	69.7%	122,109	121,499
60%	60.5%	104,665	105,591
50%	49.7%	87,221	86,675
40%	40.5%	69,777	70,632
30%	30.0%	52,332	52,419
20%	20.0%	34,888	34,816
10%	10.1%	17,444	17,549
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			176,085
Calibration 2			174,991
Calibration 3			174,826
ssj_ops@calibrated=174,909
100%	99.9%	174,909	174,666
90%	91.4%	157,418	159,843
80%	79.3%	139,927	138,757
70%	70.1%	122,436	122,620
60%	60.0%	104,945	104,878
50%	50.1%	87,454	87,646
40%	39.8%	69,963	69,542
30%	30.0%	52,473	52,416
20%	20.0%	34,982	34,957
10%	10.1%	17,491	17,691
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			175,308
Calibration 2			174,348
Calibration 3			174,524
ssj_ops@calibrated=174,436
100%	100.1%	174,436	174,569
90%	91.4%	156,993	159,407
80%	79.8%	139,549	139,281
70%	69.6%	122,105	121,361
60%	60.8%	104,662	106,056
50%	49.7%	87,218	86,679
40%	39.4%	69,774	68,787
30%	29.9%	52,331	52,215
20%	20.0%	34,887	34,862
10%	9.9%	17,444	17,324
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			175,091
Calibration 2			175,604
Calibration 3			175,702
ssj_ops@calibrated=175,653
100%	99.8%	175,653	175,242
90%	91.3%	158,088	160,298
80%	79.8%	140,522	140,153
70%	70.3%	122,957	123,425
60%	60.0%	105,392	105,473
50%	50.0%	87,826	87,742
40%	39.6%	70,261	69,578
30%	29.2%	52,696	51,253
20%	19.8%	35,131	34,720
10%	10.1%	17,565	17,741
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			173,838
Calibration 2			173,446
Calibration 3			173,794
ssj_ops@calibrated=173,620
100%	100.2%	173,620	173,992
90%	90.9%	156,258	157,810
80%	79.3%	138,896	137,671
70%	70.4%	121,534	122,207
60%	59.5%	104,172	103,242
50%	49.4%	86,810	85,737
40%	40.1%	69,448	69,612
30%	29.7%	52,086	51,624
20%	20.0%	34,724	34,778
10%	10.0%	17,362	17,445
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

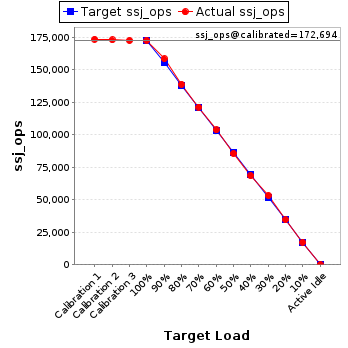

JVM 'WIN-PEKNURDBKJA.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			173,455
Calibration 2			172,876
Calibration 3			172,511
ssj_ops@calibrated=172,694
100%	99.9%	172,694	172,539
90%	91.7%	155,424	158,407
80%	80.4%	138,155	138,876
70%	70.2%	120,885	121,273
60%	60.1%	103,616	103,724
50%	49.5%	86,347	85,464
40%	39.6%	69,077	68,308
30%	30.8%	51,808	53,262
20%	20.0%	34,539	34,487
10%	10.0%	17,269	17,316
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
