SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX1320 M6 | SPECpower_ssj2008 = 12,825 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Mar 20, 2025 |
| Hardware Availability: | Apr-2025 | Software Availability: | Jan-2024 | Publication: | Apr 9, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

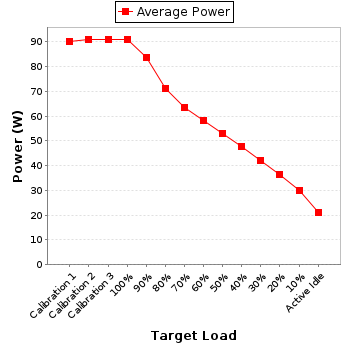

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 90.1 | 20.5 |
| Calibration 2 | 90.9 | 20.6 |
| Calibration 3 | 91.1 | 20.7 |
| 100% | 91.1 | 20.8 |
| 90% | 83.5 | 20.9 |
| 80% | 71.3 | 21.1 |
| 70% | 63.6 | 21.2 |
| 60% | 58.2 | 21.2 |
| 50% | 52.9 | 21.4 |
| 40% | 47.7 | 21.4 |
| 30% | 42.2 | 21.5 |
| 20% | 36.4 | 21.5 |
| 10% | 30.2 | 21.5 |
| Active Idle | 21.1 | 21.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY246003096 |
| Date of Calibration: | 18-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300.0 | 0.467 | 1.0 | 0.943 | 90.1 | 0.3% |
| Calibration 2 | 205 | 300.0 | 0.471 | 1.0 | 0.944 | 90.9 | 0.3% |
| Calibration 3 | 204 | 300.0 | 0.472 | 1.0 | 0.944 | 91.1 | 0.3% |
| 100% | 204 | 300.0 | 0.472 | 1.0 | 0.944 | 91.1 | 0.3% |
| 90% | 205 | 300.0 | 0.437 | 1.0 | 0.936 | 83.5 | 0.3% |
| 80% | 204 | 300.0 | 0.379 | 1.0 | 0.922 | 71.3 | 0.4% |
| 70% | 204 | 300.0 | 0.343 | 1.0 | 0.910 | 63.6 | 0.4% |
| 60% | 204 | 300.0 | 0.318 | 1.0 | 0.897 | 58.2 | 0.4% |
| 50% | 204 | 300.0 | 0.294 | 1.0 | 0.882 | 52.9 | 0.4% |
| 40% | 204 | 300.0 | 0.271 | 1.0 | 0.864 | 47.7 | 0.5% |
| 30% | 204 | 300.0 | 0.246 | 0.5 | 0.841 | 42.2 | 0.3% |
| 20% | 204 | 300.0 | 0.220 | 0.5 | 0.809 | 36.4 | 0.4% |
| 10% | 204 | 300.0 | 0.193 | 0.5 | 0.763 | 30.2 | 0.4% |
| Active Idle | 204 | 300.0 | 0.156 | 0.5 | 0.659 | 21.1 | 0.6% |
