SPECpower_ssj2008 Host 'WIN-PEKNURDBKJA' Performance Report

SPECpower_ssj2008

Host 'WIN-PEKNURDBKJA' Performance Report

Fujitsu PRIMERGY TX1320 M6			ssj_ops@100% = 1,393,596 ssj_ops@100% per JVM = 174,199
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Mar 20, 2025
Hardware Availability:	Apr-2025	Software Availability:	Jan-2024	Publication:	Apr 9, 2025
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,398,817
Calibration 2			1,392,982
Calibration 3			1,389,287
ssj_ops@calibrated=1,391,134
100%	100.2%	1,391,134	1,393,596
90%	90.9%	1,252,021	1,264,824
80%	80.1%	1,112,908	1,114,062
70%	69.9%	973,794	973,036
60%	59.9%	834,681	833,346
50%	50.1%	695,567	696,888
40%	40.0%	556,454	556,798
30%	30.1%	417,340	418,234
20%	20.0%	278,227	278,520
10%	10.1%	139,113	140,368
Active Idle		0	0

System Under Test

Set: 'TX1320M6'

Set Identifier:	TX1320M6
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY TX1320 M6
Form Factor:	Tower
CPU Name:	Intel Xeon 6369P
CPU Characteristics:	8-Core, 3.30 GHz, 24 MB L3 Cache
CPU Frequency (MHz):	3300
CPU(s) Enabled:	8 cores, 1 chip, 8 cores/chip
Hardware Threads:	16 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	24 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	32
# and size of DIMM:	2 x 16384 MB
Memory Details:	2 x 16 GB 1Rx8 DDR5-4800 U ECC; slots 1A, 1B populated
Power Supply Quantity and Rating (W):	1 x 280
Power Supply Details:	Standard 280W Platinum PSU, S26113-E665-V71-1
Disk Drive:	1 x M.2 SSD 240GB, PY-MF24YN5
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x RJ45 with integrated LEDs for fixed onboard 1Gb LAN
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power saver
Operating System (OS):	Windows Server 2022 Standard
OS Version:	Version 21H2, OS build 20348.1906
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:FreqInlineSize=2500 -XX:MaxInlineSize=270 -XX:UseAVX=0 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:+UseAdaptiveSizePolicy -XX:+UseParallelGC -XX:+UseBiasedLocking -XX:InitialTenuringThreshold=12 -XX:LoopUnrollLimit=45 -XX:+OptimizeFill
JVM Affinity:	START /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000]
JVM Instances:	8
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	R2.1.0
Management Firmware Version:	2.58S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set the following options in BIOS.

"LAN 2 Controller = Disabled"
"ASPM Support = L1 Only"
"Hardware Prefetcher = Disabled"
"Adjacent Cache Line Prefetch = Disabled"
"Intel Virtualization Technology = Disabled"
"Turbo Mode = Disabled"
"Total Memory Encryption = Disabled"
"Package C-State limit = C7"
"DMI Max Link Speed = Gen1"
"Intel(R) Speed Shift Technology = Disabled"
"SATA Port X = Disabled"
"Legacy USB Support = Auto"
"Serial Port = Disabled"

Management Firmware Settings

None

System Under Test Notes

Set the following options in OS.

"Turn off hard disk after = 1 Minute"
"Minimum processor state = 0%"
"Turn off display after = 1 Minute"

Execute the following commands in OS.

"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFINCTHRESHOLD 95"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFINCTIME 40"
"POWERCFG /SETACVALUEINDEX SCHEME_CURRENT SUB_PROCESSOR PERFINCTHRESHOLD 93"
"POWERCFG /S SCHEME_CURRENT"

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
SPECpower_ssj.props input.load_level.number_warehouses set to 16.
The system ROM used for this result contains Intel microcode version 000000002C010000 for the Intel Xeon 6369P processor.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-PEKNURDBKJA.001	173,299
WIN-PEKNURDBKJA.002	174,399
WIN-PEKNURDBKJA.003	175,352
WIN-PEKNURDBKJA.004	174,676
WIN-PEKNURDBKJA.005	175,187
WIN-PEKNURDBKJA.006	175,984
WIN-PEKNURDBKJA.007	172,580
WIN-PEKNURDBKJA.008	172,118
ssj_ops@100%	1,393,596
ssj_ops@100% per JVM	174,199

JVM 'WIN-PEKNURDBKJA.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			174,106
Calibration 2			173,422
Calibration 3			172,644
ssj_ops@calibrated=173,033
100%	100.2%	173,033	173,299
90%	91.2%	155,730	157,853
80%	80.6%	138,426	139,435
70%	70.1%	121,123	121,275
60%	60.1%	103,820	104,004
50%	50.1%	86,516	86,694
40%	39.7%	69,213	68,736
30%	30.2%	51,910	52,181
20%	20.3%	34,607	35,210
10%	9.7%	17,303	16,812
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

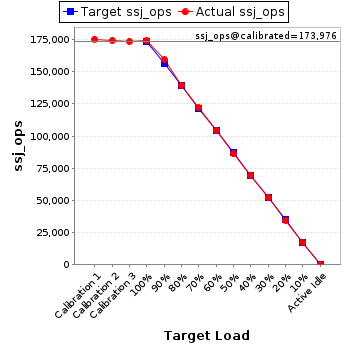

JVM 'WIN-PEKNURDBKJA.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			175,368
Calibration 2			174,276
Calibration 3			173,676
ssj_ops@calibrated=173,976
100%	100.2%	173,976	174,399
90%	91.7%	156,578	159,464
80%	80.2%	139,181	139,588
70%	70.1%	121,783	121,880
60%	60.1%	104,385	104,646
50%	49.6%	86,988	86,217
40%	40.1%	69,590	69,721
30%	29.9%	52,193	52,073
20%	19.8%	34,795	34,420
10%	10.0%	17,398	17,470
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			176,306
Calibration 2			175,052
Calibration 3			174,481
ssj_ops@calibrated=174,767
100%	100.3%	174,767	175,352
90%	90.5%	157,290	158,130
80%	79.7%	139,813	139,309
70%	70.6%	122,337	123,374
60%	60.2%	104,860	105,232
50%	50.1%	87,383	87,588
40%	40.0%	69,907	69,847
30%	30.9%	52,430	53,949
20%	20.2%	34,953	35,246
10%	10.0%	17,477	17,454
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			175,735
Calibration 2			174,509
Calibration 3			174,485
ssj_ops@calibrated=174,497
100%	100.1%	174,497	174,676
90%	91.3%	157,047	159,355
80%	80.5%	139,598	140,468
70%	69.9%	122,148	122,051
60%	60.1%	104,698	104,892
50%	50.6%	87,248	88,293
40%	40.1%	69,799	69,972
30%	30.2%	52,349	52,658
20%	20.2%	34,899	35,261
10%	10.3%	17,450	17,925
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			176,070
Calibration 2			174,884
Calibration 3			175,008
ssj_ops@calibrated=174,946
100%	100.1%	174,946	175,187
90%	89.8%	157,451	157,108
80%	80.0%	139,957	139,904
70%	69.9%	122,462	122,278
60%	59.7%	104,968	104,415
50%	50.0%	87,473	87,389
40%	40.0%	69,978	69,986
30%	29.8%	52,484	52,116
20%	20.2%	34,989	35,386
10%	10.0%	17,495	17,437
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			175,754
Calibration 2			176,165
Calibration 3			175,411
ssj_ops@calibrated=175,788
100%	100.1%	175,788	175,984
90%	91.6%	158,209	161,099
80%	80.3%	140,630	141,091
70%	69.5%	123,051	122,244
60%	60.0%	105,473	105,465
50%	50.4%	87,894	88,572
40%	40.4%	70,315	71,004
30%	29.4%	52,736	51,731
20%	19.6%	35,158	34,533
10%	10.2%	17,579	17,887
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

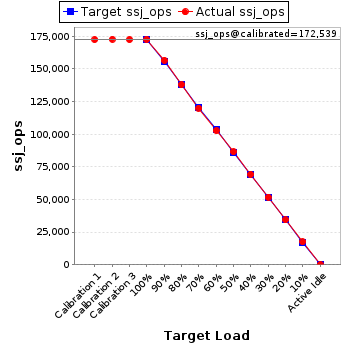

JVM 'WIN-PEKNURDBKJA.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			172,395
Calibration 2			172,696
Calibration 3			172,382
ssj_ops@calibrated=172,539
100%	100.0%	172,539	172,580
90%	90.8%	155,285	156,595
80%	79.8%	138,031	137,756
70%	69.5%	120,777	119,998
60%	59.5%	103,523	102,610
50%	50.1%	86,269	86,437
40%	40.1%	69,015	69,238
30%	30.0%	51,762	51,749
20%	19.8%	34,508	34,245
10%	10.1%	17,254	17,400
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PEKNURDBKJA.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			173,084
Calibration 2			171,979
Calibration 3			171,201
ssj_ops@calibrated=171,590
100%	100.3%	171,590	172,118
90%	90.5%	154,431	155,220
80%	79.6%	137,272	136,512
70%	69.9%	120,113	119,936
60%	59.5%	102,954	102,082
50%	49.9%	85,795	85,698
40%	39.8%	68,636	68,294
30%	30.2%	51,477	51,777
20%	19.9%	34,318	34,220
10%	10.5%	17,159	17,983
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
