ASUSTeK Computer Inc. RS720A-E13-RS8U SPECpower_ssj2008 = 44,168 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Apr 7, 2025
Hardware Availability: Dec-2024 Software Availability: Feb-2025 Publication: May 6, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 40,607,285 800 50,766
90% 90.0% 36,636,673 661 55,400
80% 79.9% 32,554,461 587 55,457
70% 69.9% 28,463,738 544 52,284
60% 60.0% 24,417,722 503 48,527
50% 50.0% 20,374,987 461 44,205
40% 40.0% 16,302,433 412 39,559
30% 30.0% 12,223,342 362 33,723
20% 20.0% 8,142,702 314 25,927
10% 10.0% 4,065,937 265 15,365
Active Idle 0 157 0
∑ssj_ops / ∑power = 44,168

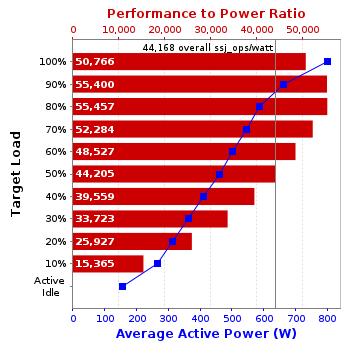

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS720A-E13-RS8U
Form Factor: 2U
CPU Name: AMD EPYC 9965
CPU Characteristics: 192-Core, 2.25GHz, 384MB L3 Cache, AMD Core Performance Boost up to 3.70GHz
CPU Frequency (MHz): 2250
CPU(s) Enabled: 384 cores, 2 chips, 192 cores/chip
Hardware Threads: 768 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip, 32 MB shared / 16 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 24 x 16GB 1Rx8 PC5-6400B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 2700
Power Supply Details: DELTA DPS-2700AB-2 B REV:S1F, P/N: 0A100-00610100
Disk Drive: 1 x 512GB Samsung P4X4 M.2 PCIE SSD, P/N: 03B03-00377300
Disk Controller: Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ASUS PEI-10G/X710-2T OCP3 adapter, P/N: 90SC0HU0-M0XBN0
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2762)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1450m -Xms1650m -Xmx1650m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:InlineSmallCode=3900 -XX:+UseBiasedLocking -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=8
JVM Affinity: start /NODE [0-23] /AFFINITY [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 192
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: 0502
Management Firmware Version: 1.1.19
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB5044281, ASUS Control Center V3.1.0.3
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS200-E9-PS2
CPU Description: 1 x E3-1240L V5
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: OMNIO Calibration Laboratory Ltd.
Calibration Label: OCL-240517F00501
Date of Calibration: 17-May-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 800 21.1
90% 661 21.1
80% 587 21.0
70% 544 21.0
60% 503 21.0
50% 461 21.0
40% 412 21.0
30% 362 21.0
20% 314 21.0
10% 265 21.1
Active Idle 157 21.1
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.0 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     40,798,490
Calibration 2     40,738,728
Calibration 3     40,707,911
ssj_ops@calibrated=40,723,319
100% 99.7% 40,723,319 40,607,285
90% 90.0% 36,650,987 36,636,673
80% 79.9% 32,578,655 32,554,461
70% 69.9% 28,506,324 28,463,738
60% 60.0% 24,433,992 24,417,722
50% 50.0% 20,361,660 20,374,987
40% 40.0% 16,289,328 16,302,433
30% 30.0% 12,216,996 12,223,342
20% 20.0% 8,144,664 8,142,702
10% 10.0% 4,072,332 4,065,937
Active Idle   0 0

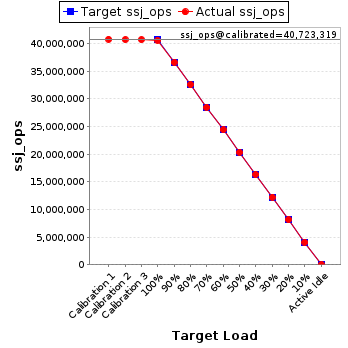

Graph of results
See the Host Performance Report for additional details.
