Lenovo Global Technology ThinkEdge SE100 SPECpower_ssj2008 = 15,019 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 30, 2025
Hardware Availability: May-2025 Software Availability: Sep-2024 Publication: May 20, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 44.4 22.9
Calibration 2 45.0 22.8
Calibration 3 45.1 22.8
100% 44.9 22.7
90% 42.6 22.6
80% 40.3 22.6
70% 38.0 22.6
60% 35.7 22.8
50% 33.1 22.9
40% 30.6 23.0
30% 28.3 23.2
20% 26.4 23.4
10% 24.3 23.6
Active Idle 22.0 23.8

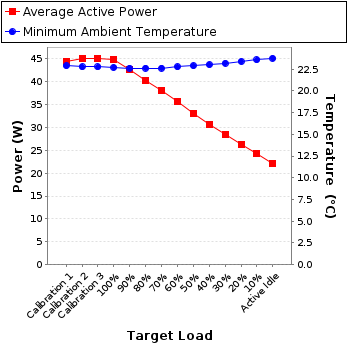

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UG05013E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB
Calibration Label: 1GA24011968-0001
Date of Calibration: 25-Sep-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 0.432 1.0 0.467 44.4 0.6%
Calibration 2 220 300.0 0.437 1.0 0.467 45.0 0.6%
Calibration 3 220 300.0 0.441 1.0 0.464 45.1 0.6%
100% 220 300.0 0.442 1.0 0.461 44.9 0.6%
90% 220 300.0 0.424 1.0 0.457 42.6 0.7%
80% 220 300.0 0.404 1.0 0.454 40.3 0.7%
70% 220 300.0 0.384 1.0 0.449 38.0 0.7%
60% 220 300.0 0.366 1.0 0.443 35.7 0.7%
50% 220 300.0 0.345 1.0 0.436 33.1 0.7%
40% 220 300.0 0.323 1.0 0.430 30.6 0.7%
30% 220 300.0 0.305 1.0 0.422 28.3 0.8%
20% 220 300.0 0.293 1.0 0.408 26.4 0.8%
10% 220 300.0 0.278 1.0 0.398 24.3 0.8%
Active Idle 220 300.0 0.256 1.0 0.391 22.0 0.8%

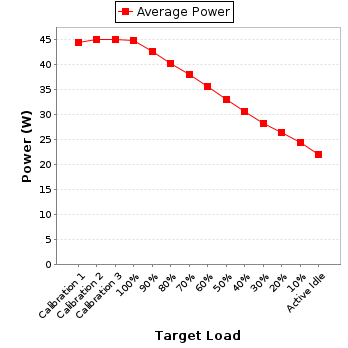

Power details for pwr1
