Lenovo Global Technology ThinkEdge SE100 SPECpower_ssj2008 = 15,182 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jun 3, 2025
Hardware Availability: May-2025 Software Availability: Feb-2025 Publication: Jun 23, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 46.2 21.8
Calibration 2 46.5 22.1
Calibration 3 46.6 22.4
100% 46.0 22.6
90% 43.6 22.8
80% 41.2 22.9
70% 38.7 23.2
60% 36.1 23.4
50% 33.8 23.6
40% 31.3 23.9
30% 29.1 24.1
20% 26.7 24.2
10% 24.3 24.0
Active Idle 22.2 23.8

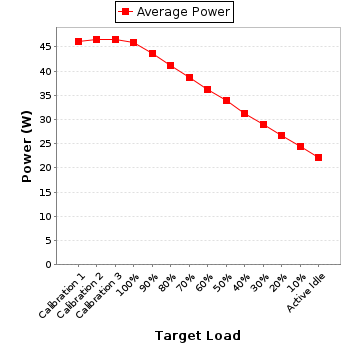

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UG05013E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB
Calibration Label: 1GA24011968-0001
Date of Calibration: 25-Sep-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 0.452 2.0 0.463 46.2 0.8%
Calibration 2 220 300.0 0.457 2.0 0.462 46.5 0.8%
Calibration 3 220 300.0 0.455 2.0 0.464 46.6 0.8%
100% 221 300.0 0.453 2.0 0.461 46.0 0.8%
90% 220 300.0 0.432 2.0 0.458 43.6 0.8%
80% 221 300.0 0.409 2.0 0.457 41.2 0.8%
70% 220 300.0 0.386 1.0 0.455 38.7 0.7%
60% 220 300.0 0.363 1.0 0.451 36.1 0.7%
50% 220 300.0 0.342 1.0 0.449 33.8 0.7%
40% 220 300.0 0.320 1.0 0.444 31.3 0.7%
30% 220 300.0 0.300 1.0 0.439 29.1 0.7%
20% 221 300.0 0.279 1.0 0.433 26.7 0.8%
10% 220 300.0 0.261 1.0 0.423 24.3 0.8%
Active Idle 220 300.0 0.241 0.5 0.419 22.2 0.7%
Power details for pwr1
