Lenovo Global Technology ThinkEdge SE100 SPECpower_ssj2008 = 14,244 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jun 12, 2025
Hardware Availability: May-2025 Software Availability: Feb-2025 Publication: Jul 1, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 98.1 22.4
Calibration 2 98.0 22.4
Calibration 3 98.4 22.4
100% 97.1 22.2
90% 92.5 22.2
80% 88.4 22.2
70% 83.4 22.3
60% 76.3 22.4
50% 71.4 22.4
40% 67.1 22.4
30% 61.8 22.6
20% 57.3 22.6
10% 52.4 22.7
Active Idle 45.9 22.8

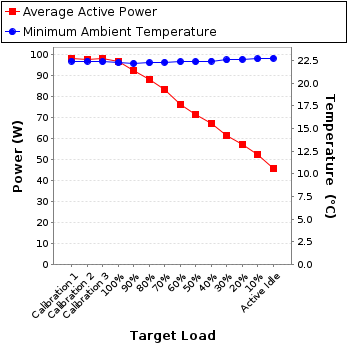

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UG05013E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB
Calibration Label: 1GA24011968-0001
Date of Calibration: 25-Sep-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 0.510 2.0 0.873 98.1 0.5%
Calibration 2 220 300.0 0.509 2.0 0.873 98.0 0.5%
Calibration 3 220 300.0 0.510 2.0 0.875 98.4 0.5%
100% 220 300.0 0.504 2.0 0.873 97.1 0.5%
90% 220 300.0 0.483 2.0 0.870 92.5 0.5%
80% 220 300.0 0.467 2.0 0.859 88.4 0.5%
70% 220 300.0 0.444 1.0 0.853 83.4 0.4%
60% 220 300.0 0.410 1.0 0.843 76.3 0.4%
50% 220 300.0 0.389 1.0 0.832 71.4 0.4%
40% 220 300.0 0.372 1.0 0.818 67.1 0.4%
30% 220 300.0 0.348 1.0 0.806 61.8 0.4%
20% 220 300.0 0.327 1.0 0.796 57.3 0.5%
10% 220 300.0 0.305 1.0 0.779 52.4 0.5%
Active Idle 220 300.0 0.277 0.5 0.753 45.9 0.4%

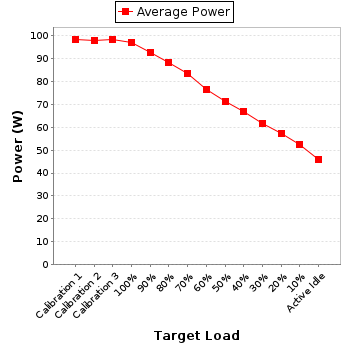

Power details for pwr1
