Lenovo Global Technology ThinkEdge SE100 SPECpower_ssj2008 = 14,691 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jun 27, 2025
Hardware Availability: May-2025 Software Availability: Sep-2024 Publication: Jul 16, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 90.1 21.2
Calibration 2 90.7 21.2
Calibration 3 91.1 21.2
100% 89.0 21.1
90% 85.4 21.2
80% 81.6 21.2
70% 78.1 21.3
60% 71.3 21.3
50% 66.6 21.2
40% 61.9 21.2
30% 56.6 21.3
20% 52.6 21.2
10% 48.7 21.2
Active Idle 44.7 21.2

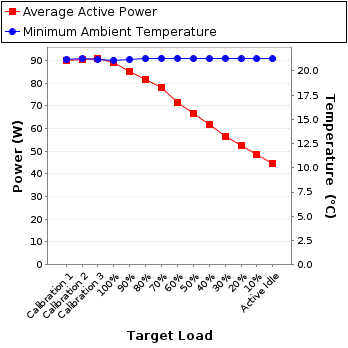

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UG05013E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB
Calibration Label: 1GA24011968-0001
Date of Calibration: 25-Sep-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 0.472 2.0 0.868 90.1 0.5%
Calibration 2 220 300.0 0.475 2.0 0.868 90.7 0.5%
Calibration 3 220 300.0 0.476 2.0 0.869 91.1 0.5%
100% 220 300.0 0.466 2.0 0.868 89.0 0.5%
90% 220 300.0 0.452 2.0 0.857 85.4 0.5%
80% 220 300.0 0.435 2.0 0.851 81.6 0.5%
70% 220 300.0 0.418 1.0 0.848 78.1 0.4%
60% 220 300.0 0.389 1.0 0.832 71.3 0.4%
50% 220 300.0 0.367 1.0 0.822 66.6 0.4%
40% 220 300.0 0.349 1.0 0.805 61.9 0.4%
30% 220 300.0 0.323 1.0 0.796 56.6 0.5%
20% 220 300.0 0.305 1.0 0.783 52.6 0.5%
10% 220 300.0 0.288 1.0 0.767 48.7 0.5%
Active Idle 221 300.0 0.270 0.5 0.750 44.7 0.4%
Power details for pwr1
