Lenovo Global Technology ThinkEdge SE100 ssj_ops@100% = 977,891
ssj_ops@100% per JVM = 61,118
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Aug 18, 2025
Hardware Availability: May-2025 Software Availability: Sep-2024 Publication: Sep 9, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     816,795
Calibration 2     964,326
Calibration 3     992,649
ssj_ops@calibrated=978,488
100% 99.9% 978,488 977,891
90% 90.1% 880,639 881,645
80% 79.9% 782,790 782,191
70% 69.7% 684,941 682,420
60% 60.1% 587,093 587,638
50% 50.0% 489,244 488,762
40% 40.1% 391,395 392,561
30% 29.8% 293,546 291,119
20% 20.0% 195,698 195,693
10% 10.1% 97,849 98,769
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 3
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE100
Form Factor: 1U
CPU Name: Intel Core Ultra 7 255H
CPU Characteristics: 16 Core, 2.0GHz, 24MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 48 KB D on chip per core
Secondary Cache: 3 MB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8GB 1Rx16 PC5-6400B; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A89422
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1GbE RJ45
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows 11 Enterprise
OS Version: Version 24H2(OS Build 26100.1742)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn450m -Xms512m -Xmx512m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0] /AFFINITY [0x1,0x2,0x4,0x8,0x10,0x20,0x40,0x80,0x100,0x200,0x400,0x800,0x1000,0x2000,0x4000,0x8000]
JVM Instances: 16
JVM Initial Heap (MB): 512
JVM Maximum Heap (MB): 512
JVM Address Bits: 64
Boot Firmware Version: DZE104U
Management Firmware Version: DZX310C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5043080
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
DESKTOP-KJ3I2UJ.001 87,950
DESKTOP-KJ3I2UJ.002 89,570
DESKTOP-KJ3I2UJ.003 49,920
DESKTOP-KJ3I2UJ.004 51,479
DESKTOP-KJ3I2UJ.005 52,495
DESKTOP-KJ3I2UJ.006 51,625
DESKTOP-KJ3I2UJ.007 51,631
DESKTOP-KJ3I2UJ.008 48,138
DESKTOP-KJ3I2UJ.009 49,759
DESKTOP-KJ3I2UJ.010 52,315
DESKTOP-KJ3I2UJ.011 89,313
DESKTOP-KJ3I2UJ.012 89,448
DESKTOP-KJ3I2UJ.013 91,229
DESKTOP-KJ3I2UJ.014 88,439
DESKTOP-KJ3I2UJ.015 17,045
DESKTOP-KJ3I2UJ.016 17,535
ssj_ops@100% 977,891
ssj_ops@100% per JVM 61,118

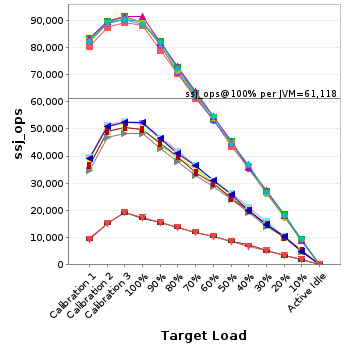

Graph of per-instance results
JVM 'DESKTOP-KJ3I2UJ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,215
Calibration 2     87,404
Calibration 3     89,064
ssj_ops@calibrated=88,234
100% 99.7% 88,234 87,950
90% 89.3% 79,411 78,749
80% 79.8% 70,587 70,392
70% 69.5% 61,764 61,347
60% 60.5% 52,940 53,366
50% 49.4% 44,117 43,598
40% 40.5% 35,294 35,737
30% 30.7% 26,470 27,117
20% 20.5% 17,647 18,062
10% 10.1% 8,823 8,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,333
Calibration 2     88,770
Calibration 3     90,202
ssj_ops@calibrated=89,486
100% 100.1% 89,486 89,570
90% 90.3% 80,537 80,771
80% 79.1% 71,589 70,763
70% 69.4% 62,640 62,065
60% 59.2% 53,692 53,018
50% 49.8% 44,743 44,560
40% 39.6% 35,794 35,449
30% 29.4% 26,846 26,308
20% 20.0% 17,897 17,882
10% 9.9% 8,949 8,837
Active Idle   0 0

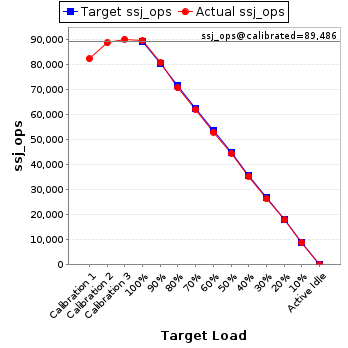

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,632
Calibration 2     48,893
Calibration 3     50,329
ssj_ops@calibrated=49,611
100% 100.6% 49,611 49,920
90% 89.1% 44,650 44,209
80% 79.0% 39,689 39,203
70% 71.0% 34,728 35,237
60% 60.0% 29,767 29,748
50% 49.9% 24,805 24,733
40% 39.9% 19,844 19,810
30% 28.8% 14,883 14,305
20% 20.3% 9,922 10,050
10% 9.8% 4,961 4,875
Active Idle   0 0

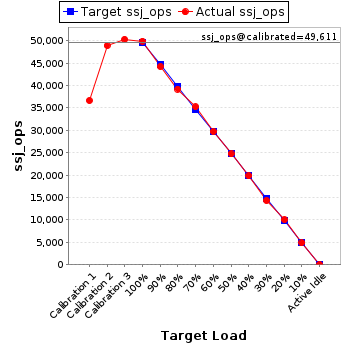

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     38,283
Calibration 2     50,359
Calibration 3     51,873
ssj_ops@calibrated=51,116
100% 100.7% 51,116 51,479
90% 91.2% 46,004 46,607
80% 79.6% 40,893 40,707
70% 69.7% 35,781 35,631
60% 60.1% 30,670 30,707
50% 50.0% 25,558 25,578
40% 40.6% 20,446 20,758
30% 30.3% 15,335 15,500
20% 19.7% 10,223 10,075
10% 9.8% 5,112 5,029
Active Idle   0 0

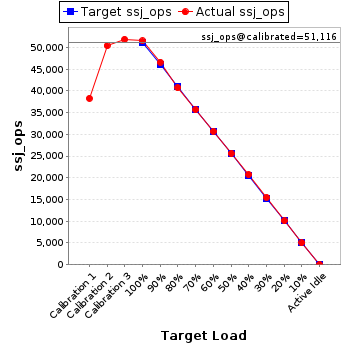

Graph of results
See the JVM Instance Performance Report for additional details.

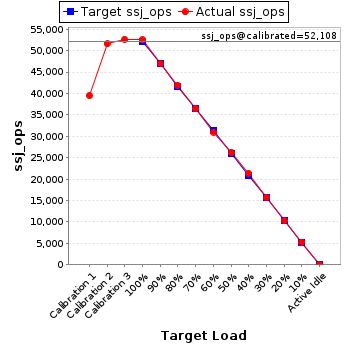

JVM 'DESKTOP-KJ3I2UJ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,487
Calibration 2     51,555
Calibration 3     52,660
ssj_ops@calibrated=52,108
100% 100.7% 52,108 52,495
90% 90.1% 46,897 46,960
80% 80.4% 41,686 41,910
70% 69.8% 36,476 36,396
60% 59.5% 31,265 30,990
50% 50.2% 26,054 26,182
40% 40.9% 20,843 21,323
30% 30.1% 15,632 15,700
20% 19.6% 10,422 10,237
10% 10.2% 5,211 5,292
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,434
Calibration 2     51,211
Calibration 3     52,635
ssj_ops@calibrated=51,923
100% 99.4% 51,923 51,625
90% 88.6% 46,731 45,979
80% 80.5% 41,538 41,781
70% 70.5% 36,346 36,594
60% 59.2% 31,154 30,757
50% 50.4% 25,961 26,152
40% 40.4% 20,769 20,975
30% 30.4% 15,577 15,800
20% 20.1% 10,385 10,441
10% 10.0% 5,192 5,183
Active Idle   0 0

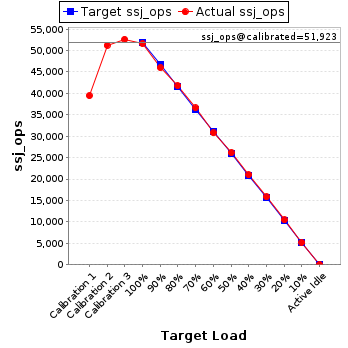

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,505
Calibration 2     51,265
Calibration 3     52,756
ssj_ops@calibrated=52,010
100% 99.3% 52,010 51,631
90% 90.0% 46,809 46,834
80% 80.6% 41,608 41,904
70% 69.5% 36,407 36,164
60% 60.1% 31,206 31,247
50% 50.4% 26,005 26,234
40% 41.1% 20,804 21,395
30% 29.3% 15,603 15,237
20% 20.2% 10,402 10,495
10% 10.2% 5,201 5,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     34,619
Calibration 2     46,904
Calibration 3     48,286
ssj_ops@calibrated=47,595
100% 101.1% 47,595 48,138
90% 89.8% 42,836 42,758
80% 79.9% 38,076 38,009
70% 69.3% 33,317 32,967
60% 60.5% 28,557 28,792
50% 50.6% 23,798 24,078
40% 40.2% 19,038 19,150
30% 29.7% 14,279 14,128
20% 20.7% 9,519 9,857
10% 10.0% 4,760 4,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,666
Calibration 2     49,106
Calibration 3     50,336
ssj_ops@calibrated=49,721
100% 100.1% 49,721 49,759
90% 89.7% 44,749 44,586
80% 80.1% 39,777 39,809
70% 68.2% 34,805 33,893
60% 60.4% 29,833 30,019
50% 49.4% 24,861 24,541
40% 40.1% 19,888 19,958
30% 30.0% 14,916 14,929
20% 20.0% 9,944 9,925
10% 10.3% 4,972 5,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

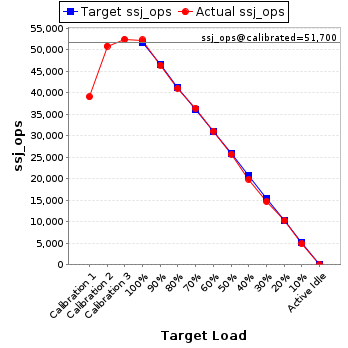

JVM 'DESKTOP-KJ3I2UJ.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,060
Calibration 2     50,907
Calibration 3     52,492
ssj_ops@calibrated=51,700
100% 101.2% 51,700 52,315
90% 89.9% 46,530 46,457
80% 79.4% 41,360 41,060
70% 70.5% 36,190 36,453
60% 60.2% 31,020 31,112
50% 49.7% 25,850 25,720
40% 38.5% 20,680 19,912
30% 28.5% 15,510 14,746
20% 19.9% 10,340 10,270
10% 9.5% 5,170 4,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,155
Calibration 2     89,422
Calibration 3     91,403
ssj_ops@calibrated=90,412
100% 98.8% 90,412 89,313
90% 90.7% 81,371 82,018
80% 80.4% 72,330 72,727
70% 69.8% 63,289 63,109
60% 59.9% 54,247 54,160
50% 50.0% 45,206 45,238
40% 39.7% 36,165 35,908
30% 29.7% 27,124 26,841
20% 20.3% 18,082 18,320
10% 10.3% 9,041 9,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,759
Calibration 2     89,210
Calibration 3     90,902
ssj_ops@calibrated=90,056
100% 99.3% 90,056 89,448
90% 90.6% 81,050 81,570
80% 79.5% 72,045 71,576
70% 69.3% 63,039 62,364
60% 60.0% 54,034 54,012
50% 50.2% 45,028 45,163
40% 39.6% 36,022 35,687
30% 29.2% 27,017 26,333
20% 19.5% 18,011 17,528
10% 10.1% 9,006 9,070
Active Idle   0 0

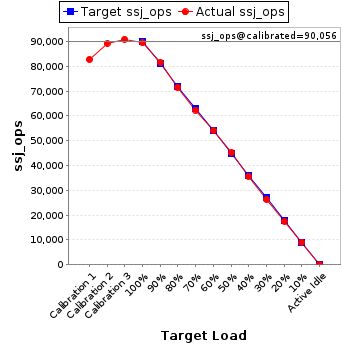

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,434
Calibration 2     89,690
Calibration 3     91,234
ssj_ops@calibrated=90,462
100% 100.8% 90,462 91,229
90% 90.2% 81,416 81,619
80% 80.6% 72,370 72,915
70% 70.6% 63,323 63,857
60% 60.4% 54,277 54,603
50% 50.0% 45,231 45,235
40% 39.5% 36,185 35,734
30% 30.0% 27,139 27,159
20% 19.9% 18,092 17,987
10% 10.0% 9,046 9,045
Active Idle   0 0

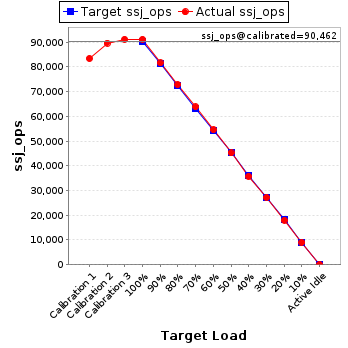

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,271
Calibration 2     89,182
Calibration 3     90,179
ssj_ops@calibrated=89,681
100% 98.6% 89,681 88,439
90% 91.2% 80,713 81,753
80% 80.4% 71,745 72,108
70% 69.6% 62,776 62,441
60% 60.8% 53,808 54,508
50% 49.8% 44,840 44,621
40% 41.0% 35,872 36,749
30% 29.7% 26,904 26,652
20% 20.1% 17,936 17,982
10% 10.5% 8,968 9,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

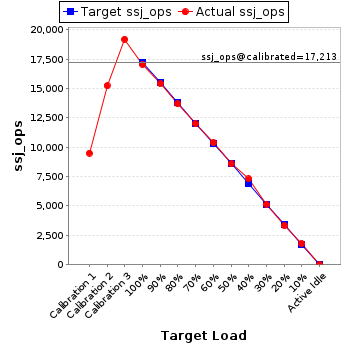

JVM 'DESKTOP-KJ3I2UJ.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,508
Calibration 2     15,227
Calibration 3     19,199
ssj_ops@calibrated=17,213
100% 99.0% 17,213 17,045
90% 89.6% 15,491 15,419
80% 79.5% 13,770 13,688
70% 69.6% 12,049 11,987
60% 60.2% 10,328 10,371
50% 49.8% 8,606 8,575
40% 42.4% 6,885 7,296
30% 30.0% 5,164 5,158
20% 19.2% 3,443 3,312
10% 10.4% 1,721 1,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,434
Calibration 2     15,220
Calibration 3     19,100
ssj_ops@calibrated=17,160
100% 102.2% 17,160 17,535
90% 89.5% 15,444 15,354
80% 79.5% 13,728 13,641
70% 69.4% 12,012 11,916
60% 59.6% 10,296 10,229
50% 49.8% 8,580 8,554
40% 39.2% 6,864 6,721
30% 30.4% 5,148 5,208
20% 19.1% 3,432 3,271
10% 11.0% 1,716 1,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
