SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R7715 (AMD EPYC 9845, 2.10 GHz) | SPECpower_ssj2008 = 37,464 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Sep 6, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Sep-2025 | Publication: | Oct 7, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

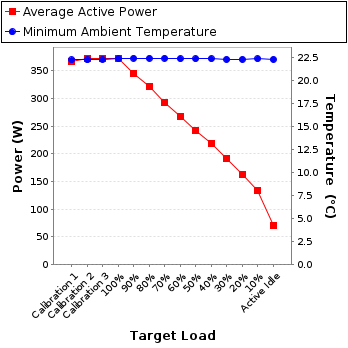

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 366 | 22.2 |
| Calibration 2 | 372 | 22.2 |
| Calibration 3 | 373 | 22.3 |
| 100% | 373 | 22.4 |
| 90% | 346 | 22.4 |
| 80% | 321 | 22.4 |
| 70% | 292 | 22.4 |
| 60% | 267 | 22.4 |
| 50% | 243 | 22.4 |
| 40% | 219 | 22.4 |
| 30% | 192 | 22.3 |
| 20% | 163 | 22.3 |
| 10% | 134 | 22.4 |
| Active Idle | 70.0 | 22.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | 334272376 |
| Date of Calibration: | 18-Dec-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

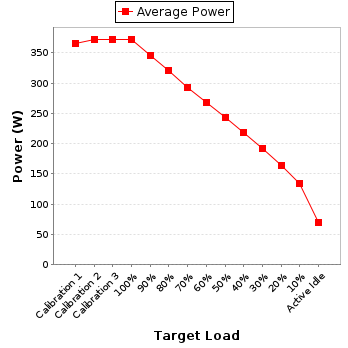

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.78 | 5.0 | 0.990 | 366 | 0.6% |
| Calibration 2 | 208 | 300.0 | 1.80 | 5.0 | 0.990 | 372 | 0.6% |
| Calibration 3 | 208 | 300.0 | 1.81 | 5.0 | 0.990 | 373 | 0.6% |
| 100% | 208 | 300.0 | 1.81 | 5.0 | 0.990 | 373 | 0.6% |
| 90% | 208 | 300.0 | 1.68 | 5.0 | 0.988 | 346 | 0.6% |
| 80% | 208 | 300.0 | 1.56 | 5.0 | 0.987 | 321 | 0.7% |
| 70% | 208 | 300.0 | 1.43 | 5.0 | 0.984 | 292 | 0.7% |
| 60% | 208 | 300.0 | 1.31 | 5.0 | 0.982 | 267 | 0.8% |
| 50% | 208 | 300.0 | 1.19 | 2.0 | 0.979 | 243 | 0.4% |
| 40% | 208 | 300.0 | 1.07 | 2.0 | 0.977 | 219 | 0.5% |
| 30% | 208 | 300.0 | 0.948 | 2.0 | 0.973 | 192 | 0.5% |
| 20% | 208 | 300.0 | 0.812 | 2.0 | 0.967 | 163 | 0.6% |
| 10% | 208 | 300.0 | 0.676 | 1.0 | 0.951 | 134 | 0.4% |
| Active Idle | 208 | 300.0 | 0.392 | 1.0 | 0.859 | 70.0 | 0.7% |
