SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| xFusion Digital Technologies Co., Ltd FusionServer 2288 V8 | SPECpower_ssj2008 = 25,944 overall ssj_ops/watt | ||||
| Test Sponsor: | xFusion Digital Technologies Co., Ltd | SPEC License #: | 6488 | Test Method: | Single Node |
| Tested By: | xFusion Digital Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Jan 12, 2026 |
| Hardware Availability: | Nov-2025 | Software Availability: | Nov-2025 | Publication: | Jan 27, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

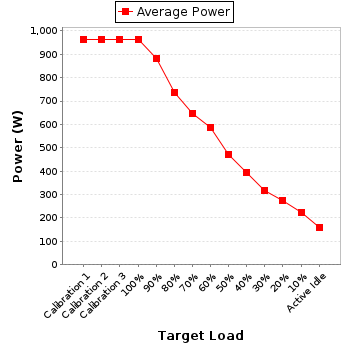

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 962 | 22.7 |
| Calibration 2 | 963 | 23.1 |
| Calibration 3 | 964 | 23.6 |
| 100% | 963 | 23.8 |
| 90% | 883 | 23.6 |
| 80% | 736 | 23.1 |
| 70% | 646 | 23.2 |
| 60% | 588 | 23.1 |
| 50% | 469 | 23.0 |
| 40% | 393 | 22.8 |
| 30% | 318 | 23.4 |
| 20% | 274 | 23.4 |
| 10% | 221 | 22.8 |
| Active Idle | 161 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA Inc. |
| Model: | WT210 |
| Serial Number: | 91M838229 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 25C8117B3F9EE75FEB |
| Date of Calibration: | 17-Jul-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 4.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 4.38 | 10.0 | 0.996 | 962 | 0.5% |
| Calibration 2 | 220 | 300.0 | 4.38 | 10.0 | 0.996 | 963 | 0.5% |
| Calibration 3 | 220 | 300.0 | 4.39 | 10.0 | 0.997 | 964 | 0.5% |
| 100% | 220 | 300.0 | 4.38 | 10.0 | 0.997 | 963 | 0.5% |
| 90% | 221 | 300.0 | 4.02 | 10.0 | 0.995 | 883 | 0.5% |
| 80% | 221 | 300.0 | 3.36 | 5.0 | 0.992 | 736 | 0.4% |
| 70% | 221 | 300.0 | 2.95 | 5.0 | 0.991 | 646 | 0.4% |
| 60% | 221 | 300.0 | 2.69 | 5.0 | 0.989 | 588 | 0.4% |
| 50% | 221 | 300.0 | 2.14 | 5.0 | 0.990 | 469 | 0.5% |
| 40% | 221 | 300.0 | 1.82 | 5.0 | 0.977 | 393 | 0.6% |
| 30% | 221 | 300.0 | 1.47 | 5.0 | 0.978 | 318 | 0.7% |
| 20% | 221 | 300.0 | 1.27 | 2.0 | 0.973 | 274 | 0.4% |
| 10% | 221 | 300.0 | 1.04 | 2.0 | 0.963 | 221 | 0.5% |
| Active Idle | 221 | 300.0 | 0.753 | 2.0 | 0.966 | 161 | 0.6% |
