Lenovo Global Technology Think System SR665 V3 SPECpower_ssj2008 = 43,403 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 24, 2026
Hardware Availability: Jan-2026 Software Availability: Jun-2025 Publication: Feb 10, 2026
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 37,001,234 696 53,157
90% 90.0% 33,454,592 646 51,801
80% 80.0% 29,744,170 574 51,798
70% 70.0% 26,029,186 529 49,173
60% 60.0% 22,304,861 482 46,243
50% 50.0% 18,588,388 435 42,705
40% 40.0% 14,859,959 387 38,437
30% 30.0% 11,147,127 334 33,387
20% 20.0% 7,431,887 279 26,654
10% 10.0% 3,718,645 226 16,428
Active Idle 0 118 0
∑ssj_ops / ∑power = 43,403

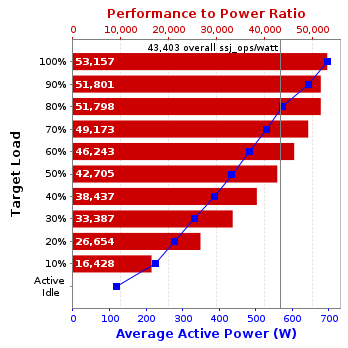

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9845 2.1 GHz
CPU Characteristics: 160-Core,2.10GHz 320MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 320 cores, 2 chips, 160 cores/chip
Hardware Threads: 640 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 24 x 16GB 1Rx8 PC5-6400-RD1; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1800
Power Supply Details: Lenovo P/N:4P57A78362
Disk Drive: 1 x 480GB M.2 SSD P/N:4XB7B07588 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP7
OS Version: 6.4.0-150700.51-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210 -XX:+AlwaysPreTouch
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 320, physicalCoreId + 321}
JVM Instances: 160
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: KAE142F
Management Firmware Version: KAX364U
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR650
CPU Description: 2 x Intel Xeon Gold 5218
Memory amount (GB): 768
Software
Operating System (OS): Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.2268)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UG05013E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB
Calibration Label: 1GA25011731-0007
Date of Calibration: 19-Sep-2025
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.3-a7835373-20251015
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 696 22.6
90% 646 22.5
80% 574 22.6
70% 529 22.7
60% 482 22.8
50% 435 22.8
40% 387 22.9
30% 334 23.0
20% 279 23.0
10% 226 23.0
Active Idle 118 23.1
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.5 43
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     34,638,315
Calibration 2     37,149,746
Calibration 3     37,193,531
ssj_ops@calibrated=37,171,638
100% 99.5% 37,171,638 37,001,234
90% 90.0% 33,454,474 33,454,592
80% 80.0% 29,737,311 29,744,170
70% 70.0% 26,020,147 26,029,186
60% 60.0% 22,302,983 22,304,861
50% 50.0% 18,585,819 18,588,388
40% 40.0% 14,868,655 14,859,959
30% 30.0% 11,151,491 11,147,127
20% 20.0% 7,434,328 7,431,887
10% 10.0% 3,717,164 3,718,645
Active Idle   0 0

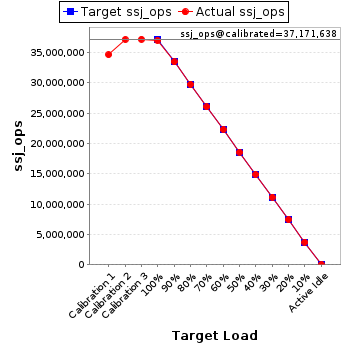

Graph of results
See the Host Performance Report for additional details.
