SPECsfs97.v3 Result

IBM Corporation :	RS/6000 Model 7026-M80
SPECsfs97.v3 =	16547 Ops/Sec (Overall Response Time = 3.12 msec)

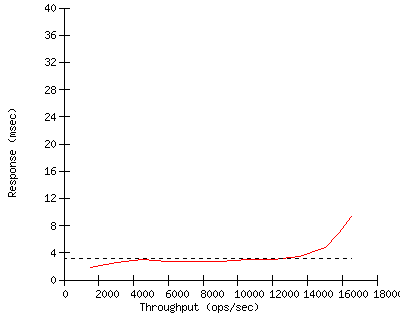

Performance

Throughput (ops/sec)	Response (msec)
1500	1.9
2999	2.6
4523	3.0
5956	2.7
7488	2.7
9024	2.7
10537	3.0
12037	3.0
13557	3.4
15046	4.8
15796	6.8
16547	9.3

Configuration

Server Configuration and Availability
Vendor	IBM Corporation
Hardware Available	June 2000
Software Available	June 2000
Date Tested	April 2000
SFS License Number	11
Licensee Locations	Austin, Texas

CPU, Memory and Power

Model Name RS/6000 Model 7026-M80

Processor 500MHz RS64-III

# of Processors 8

Primary Cache 128KBI+128KBD on chip

Secondary Cache 4MB(I+D) off chip

Other Cache None

UPS N/A

Other Hardware N/A

Memory Size 8 GB

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version AIX 4.3.3 plus APAR IY09807

Other Software N/A

File System JFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 168

Fileset Size 159.6 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit
Network Controller Desc.	Gigabit Ethernet-SX PCI Adapter
Number Networks	2 (N1-N2)
Number Network Controllers	2
Protocol Type	TCP

Switch Type 2 Alteon ACEswitch 180 Ethernet Switches

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 3

Number of Disks 193

Number of Filesystems 168 (F1-F168)

File System Creation Ops default

File System Config See Other Notes

Disk Controller Wide/Ultra-2 SCSI I/O Controller

# of Controller Type 1

Number of Disks 1

Disk Type 9.1GB 7200rpm 16-bit SCSI (P/N 25L1861)

File Systems on Disks OS, page space

Special Config Notes N/A

Disk Controller IBM SSA 160 SerialRAID Adapter

# of Controller Type 2 (i=0,1)

Number of Disks 96/96

Disk Type 18.2GB 10000rpm SSA (P/N 34L8485)

File Systems on Disks F[(i*84)+1] - F[(i+1)*84], i=0,1

Special Config Notes SSA adapters/disks configured in JBOD mode

Load Generator (LG) Configuration
Number of Load Generators	6
Number of Processes per LG	28
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model RS/6000 Model 43P-260

Number and Type Processors 2 200MHz POWER3

Memory Size 512MB

Operating System AIX 4.3.3

Compiler CSet++ 3.1.3

Compiler Options '-DSETPGRP_SYSV' and 'EXTRA_LINTFLAGS= -Nn6000 -Nd4000'

Network Type Gigabit Ethernet-SX PCI Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1,F85,F2,F86,F3,F87,...,F14,F98 N/A

2 LG1 N1 F15,F99,F16,F100,F17,F101,...,F28,F112 N/A

3 LG1 N1 F29,F113,F30,F114,F31,F115,...,F42,F126 N/A

4 LG1 N2 F43,F127,F44,F128,F45,F129,...,F56,F140 N/A

5 LG1 N2 F57,F141,F58,F142,F59,F143,...,F70,F154 N/A

6 LG1 N2 F71,F155,F72,F156,F73,F157,...,F84,F168 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1,F85,F2,F86,F3,F87,...,F14,F98	N/A
2	LG1	N1	F15,F99,F16,F100,F17,F101,...,F28,F112	N/A
3	LG1	N1	F29,F113,F30,F114,F31,F115,...,F42,F126	N/A
4	LG1	N2	F43,F127,F44,F128,F45,F129,...,F56,F140	N/A
5	LG1	N2	F57,F141,F58,F142,F59,F143,...,F70,F154	N/A
6	LG1	N2	F71,F155,F72,F156,F73,F157,...,F84,F168	N/A

Other Notes

There are 96 disks (84 filesystems) per disk controller. 8 disks per
logical disk volume (12 logical disk volumes per disk controller): 1 disk
contains filesystem logs, and each of the other 7 contain filesystem data.
The size of each filesystem log is 128MB.
Using jumbo frames (9000-byte MTU) over Gigabit Ethernet.
Server tuning: Gigabit Ethernet adapter jumbo_frames=yes; vmtune -P 100,
vmtune -r 0 -R 0, nfs_server_base_priority=60, nfs_server_clread=0,
nfs_max_threads=168, nfs_socketsize=800000, nfs_tcp_socketsize=800000
Client tuning: Gigabit Ethernet adapter jumbo_frames=yes
APAR IY09807 required on AIX 4.3.3 (9/99 release) for hardware support.

Wed May 17 14:00:38 2000

LG Type	LG1
LG Model	RS/6000 Model 43P-260
Number and Type Processors	2 200MHz POWER3
Memory Size	512MB
Operating System	AIX 4.3.3
Compiler	CSet++ 3.1.3
Compiler Options	'-DSETPGRP_SYSV' and 'EXTRA_LINTFLAGS= -Nn6000 -Nd4000'
Network Type	Gigabit Ethernet-SX PCI Adapter
