SPECsfs97.v3 Result

LSI Logic :	N4300
SPECsfs97.v3 =	6589 Ops/Sec (Overall Response Time = 3.58 msec)

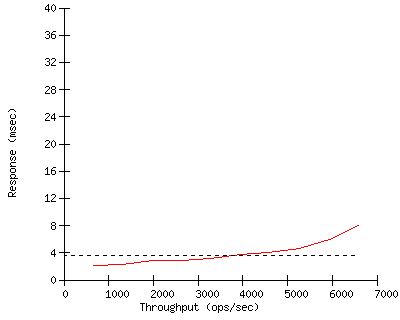

Performance

Throughput (ops/sec)	Response (msec)
653	2.1
1306	2.3
1969	2.8
2642	2.9
3286	3.2
3941	3.7
4564	4.0
5256	4.7
5932	6.0
6589	8.0

Configuration

Server Configuration and Availability
Vendor	LSI Logic
Hardware Available	Sept 2000
Software Available	Sept 2000
Date Tested	Sept 2000
SFS License Number	61
Licensee Locations	Wichita, Ks

CPU, Memory and Power

Model Name N4300

Processor UltraSPARC-II 400Mhz

# of Processors 4

Primary Cache 4k

Secondary Cache NA

Other Cache NA

UPS NA

Other Hardware NA

Memory Size 4 GB

NVRAM Size 1G total (256M/controller)

NVRAM Type CM1000 Write Cache

NVRAM Description autosensing WB/WT depending on battery charge

Server Software

OS Name and Version JetworksPlus 2.0

Other Software NA

File System VXFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 128

Fileset Size 63.8 GB

Network Subsystem
Network Type	1000Mbit Sun GigabitEthernet
Network Controller Desc.	Sun GigabitEthernet P2.0 PCI
Number Networks	2
Number Network Controllers	2
Protocol Type	TCP

Switch Type Xylan Omni Switch

Bridge Type NA

Hub Type NA

Other Network Hardware NA

Disk Subsystem and Filesystems

Number Disk Controllers 3

Number of Disks 62

Number of Filesystems 12

File System Creation Ops N/A

File System Config N/A

Disk Controller On-board Ultra-WideSCSIInterface

# of Controller Type 1

Number of Disks 2

Disk Type SCSI 18GB 10k (Part# 348-0041301)

File Systems on Disks OS, SWAP, VAR, dump

Special Config Notes The 2 internal drives are software mirrored

Disk Controller JNI PCI Bus to Fibre Channel FCI-1063-N

# of Controller Type 2

Number of Disks 60

Disk Type SCSI 18GB 10k (Part# 348-0041301)

File Systems on Disks c1=f1-f6 c2=f7-f12

Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators	8
Number of Processes per LG	12
Biod Max Read Setting	4
Biod Max Write Setting	4

LG Type LG1

LG Model Ultra-1 Sparc

Number and Type Processors 248 Mhz Ultra-1 Sparc

Memory Size 512MB

Operating System Solaris 2.6

Compiler default binary

Compiler Options default binary

Network Type Sun GigabitEthernet P2.0 PCI

LG Type LG2

LG Model UltraSparc-IIi

Number and Type Processors 360 Mhz UltraSparc-IIi

Memory Size 512MB

Operating System Solaris 2.6

Compiler default binary

Compiler Options default binary

Network Type Sun GigabitEthernet P2.0 PCI

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 /fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12 NA

2 LG1 N2 /fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12 NA

3 LG1 N1 /fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12 NA

4 LG1 N2 /fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12 NA

5 LG2 N1 /fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12 NA

6 LG2 N2 /fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12 NA

7 LG2 N1 /fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12 NA

8 LG2 N2 /fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12 NA

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	/fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12	NA
2	LG1	N2	/fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12	NA
3	LG1	N1	/fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12	NA
4	LG1	N2	/fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12	NA
5	LG2	N1	/fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12	NA
6	LG2	N2	/fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12	NA
7	LG2	N1	/fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12	NA
8	LG2	N2	/fs1, /fs7, /fs4, /fs10, /fs2, /fs8, /fs5, /fs11, /fs3, /fs9, /fs6, /fs12	NA

Other Notes

IGNORE_KERNEL_PREEMPTION=1
bufhwm=524288
ncsize=524288
maxusers=2048
priority_paging=1
nfs:nfs3_max_transfer_size=65535
maxphys=1048576
vxio:vol_maxio=65535
tcp_xmit_hiwat 65535
tcp_recv_hiwat 65535
Write cache without mirroring
2 (two) CM1000's each with 2 (two) 4766 controllers
6 (six) DM2000's, 3 per CM1000
Each DM2000 has 10 (ten) 18G, 10k drives (p/n 348-0041301)
Each Client accesses all 12, 4+1, RAID 5, FileSystems under test.
Battery Life Time: 7 day, 10sec flush, write through by default on power loss.

Tue Oct 31 15:32:53 2000

LG Type	LG1
LG Model	Ultra-1 Sparc
Number and Type Processors	248 Mhz Ultra-1 Sparc
Memory Size	512MB
Operating System	Solaris 2.6
Compiler	default binary
Compiler Options	default binary
Network Type	Sun GigabitEthernet P2.0 PCI

LG Type	LG2
LG Model	UltraSparc-IIi
Number and Type Processors	360 Mhz UltraSparc-IIi
Memory Size	512MB
Operating System	Solaris 2.6
Compiler	default binary
Compiler Options	default binary
Network Type	Sun GigabitEthernet P2.0 PCI
