SPECsfs97.v3 Result

Sun Microsystems Inc. :	Sun Enterprise 6500
SPECsfs97.v3 =	25565 Ops/Sec (Overall Response Time = 3.16 msec)

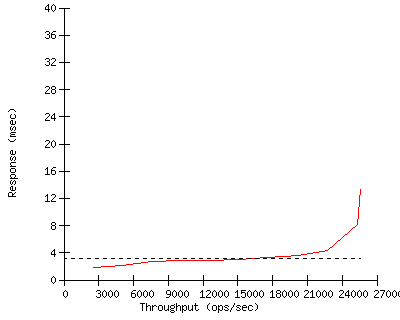

Performance

Throughput (ops/sec)	Response (msec)
2509	1.8
5011	2.2
7588	2.7
10068	2.8
12591	2.9
15087	3.0
17525	3.3
20208	3.6
22706	4.4
25343	8.1
25565	13.3

Configuration

Server Configuration and Availability
Vendor	Sun Microsystems Inc.
Hardware Available	Aug 2000
Software Available	Apr 2000
Date Tested	Oct 2000
SFS License Number	6
Licensee Locations	Palo Alto, CA

CPU, Memory and Power

Model Name Sun Enterprise 6500

Processor 400 MHz UltraSPARC II

# of Processors 22

Primary Cache 16KBI+16KBD on chip

Secondary Cache 8MB(I+D) off chip

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 28 GB

NVRAM Size 15360MB (256MB per Sun StorEdge T3 controller)

NVRAM Type Sun StorEdge T3 write cache

NVRAM Description auto-sensing WB/WT depending battery charge

Server Software

OS Name and Version Solaris8_64bit

Other Software N/A

File System UFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 1024

Fileset Size 246.6 GB

Network Subsystem
Network Type	1000Mbit Sun GigabitEthernet
Network Controller Desc.	Sun GigabitEthernet SBus adaptor 2.0
Number Networks	5 (N1-N5)
Number Network Controllers	5
Protocol Type	TCP

Switch Type 5 Extremenetworks Summit2 switch

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 31

Number of Disks 546

Number of Filesystems 60 (F1-F60)

File System Creation Ops default

File System Config default

Disk Controller On-board SCSI-2

# of Controller Type 1

Number of Disks 6

Disk Type 9GB 7200rpm

File Systems on Disks OS, swap

Special Config Notes

Disk Controller FC-AL SBus Adapter (FC100/S)/GBIC

# of Controller Type 30 (i=1,2,..,30)

Number of Disks 9,9/9,9/../9,9

Disk Type 18GB 10000rpm FC-AL (ST118202FC)

File Systems on Disks F1,F2/F3,F4/../F59,F60

Special Config Notes Filesystem on RAID5 LUNs (see "Other Notes")

Load Generator (LG) Configuration
Number of Load Generators	30
Number of Processes per LG	12
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Ultra1-170

Number and Type Processors 1 167MHz UltraSPARC

Memory Size 256MB

Operating System Solaris7

Compiler SC4.2

Compiler Options -fast -O

Network Type SunSwift 100baseT f/w SCSI SBus Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2 LG1 N1 F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23/F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47 N/A

3/4 LG1 N1 F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12/F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36 N/A

5/6 LG1 N1 F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60/F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23 N/A

7/8 LG1 N2 F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47/F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12 N/A

9/10 LG1 N2 F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36/F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60 N/A

11/12 LG1 N2 F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23/F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47 N/A

13/14 LG1 N3 F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12/F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36 N/A

15/16 LG1 N3 F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60/F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23 N/A

17/18 LG1 N3 F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47/F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12 N/A

19/20 LG1 N4 F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36/F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60 N/A

21/22 LG1 N4 F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23/F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47 N/A

23/24 LG1 N4 F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12/F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36 N/A

25/26 LG1 N5 F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60/F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23 N/A

27/28 LG1 N5 F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47/F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12 N/A

29/30 LG1 N5 F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36/F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2	LG1	N1	F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23/F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47	N/A
3/4	LG1	N1	F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12/F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36	N/A
5/6	LG1	N1	F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60/F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23	N/A
7/8	LG1	N2	F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47/F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12	N/A
9/10	LG1	N2	F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36/F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60	N/A
11/12	LG1	N2	F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23/F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47	N/A
13/14	LG1	N3	F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12/F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36	N/A
15/16	LG1	N3	F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60/F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23	N/A
17/18	LG1	N3	F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47/F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12	N/A
19/20	LG1	N4	F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36/F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60	N/A
21/22	LG1	N4	F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23/F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47	N/A
23/24	LG1	N4	F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12/F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36	N/A
25/26	LG1	N5	F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60/F1,F3,F5,F7,F9,F11,F13,F15,F17,F19,F21,F23	N/A
27/28	LG1	N5	F25,F27,F29,F31,F33,F35,F37,F39,F41,F43,F45,F47/F49,F51,F53,F55,F57,F59,F2,F4,F6,F8,F10,F12	N/A
29/30	LG1	N5	F14,F16,F18,F20,F22,F24,F26,F28,F30,F32,F34,F36/F38,F40,F42,F44,F46,F48,F50,F52,F54,F56,F58,F60	N/A

Other Notes

ufs_ninode=2097152
ncsize=2097152
bufhwm=3145728
30 FC-AL loops each connects to 2 Sun StorEdge T3
Each Sun StorEdge T3 consists of 9 disks configured as 1 RAID 5 LUN
One filesystem undertest is built on each T3 LUN
Clients of each network access all 60 filesystems undertest

Tue Jan 9 21:36:55 2001

LG Type	LG1
LG Model	Ultra1-170
Number and Type Processors	1 167MHz UltraSPARC
Memory Size	256MB
Operating System	Solaris7
Compiler	SC4.2
Compiler Options	-fast -O
Network Type	SunSwift 100baseT f/w SCSI SBus Adapter
