SPECsfs97.v3 Result

Sun Microsystems Inc. :	Sun Enterprise 4500
SPECsfs97.v3 =	8131 Ops/Sec (Overall Response Time = 6.91 msec)

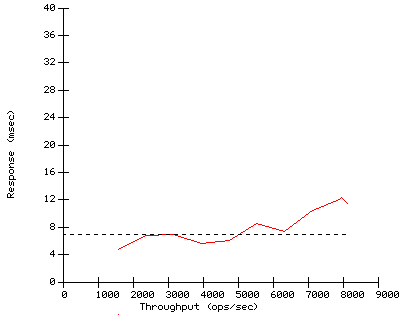

Performance

Throughput (ops/sec)	Response (msec)
772	5.0
1590	4.7
2353	6.8
3171	7.0
3957	5.6
4768	6.1
5538	8.6
6330	7.3
7124	10.5
7898	12.0
7948	12.4
8131	11.5

Configuration

Server Configuration and Availability
Vendor	Sun Microsystems Inc.
Hardware Available	Mar 1998
Software Available	Oct 1998
Date Tested	Sep 1998
SFS License Number	6
Licensee Locations	Palo Alto, CA

CPU, Memory and Power

Model Name Sun Enterprise 4500

Processor 336 MHz UltraSPARC II

# of Processors 8

Primary Cache 16KBI+16KBD on chip

Secondary Cache 4MB(I+D) off chip

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 5120 MB

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version Solaris7_64bit

Other Software N/A

File System UFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 337

Fileset Size 78.9 GB

Network Subsystem
Network Type	100Mbit Sun FastEthernet
Network Controller Desc.	SunSwift 100baseT f/w SCSI SBus Adapter
Number Networks	9 (N1-N9)
Number Network Controllers	9
Protocol Type	TCP

Switch Type 9 SunSwitch

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4

Number of Disks 172

Number of Filesystems 168 (F1-F168)

File System Creation Ops default

File System Config default

Disk Controller On-board FC-AL/GBIC

# of Controller Type 1

Number of Disks 4

Disk Type 9GB 7200rpm FC-AL

File Systems on Disks OS, swap

Special Config Notes

Disk Controller FC-AL SBus Adapter (FC100/S)/GBIC

# of Controller Type 3

Number of Disks 168

Disk Type 9GB 7200rpm FC-AL

File Systems on Disks F(i*14+1)-F(i*14+14) i(1)=0,..,3 i(2)=4,..,7 i(3)=8,..,11

Special Config Notes Sun StorEdge A5000 each w/ 14 FC-AL drives

Load Generator (LG) Configuration
Number of Load Generators	24
Number of Processes per LG	7
Biod Max Read Setting	5
Biod Max Write Setting	5

LG Type LG1

LG Model Ultra1-170

Number and Type Processors 1 167MHz UltraSPARC

Memory Size 128MB

Operating System Solaris 2.6

Compiler SC3.0

Compiler Options N/A

Network Type SunSwift 100baseT f/w SCSI SBus Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/3 LG1 N1 F1,..,F145/F2,..,F146/F3,..,F147 N/A

4/5/6 LG1 N2 F4,..,F148/F5,..,F149/F6,..,F150 N/A

7/8 LG1 N3 F7,..,F151/F8,..,F152 N/A

9/10/11 LG1 N4 F9,..,F153/F10,..,F154/F11,..,F155 N/A

12/13/14 LG1 N5 F12,..,F156/F13,..,F157/F14,..,F158 N/A

15/16 LG1 N6 F15,..,F159/F16,..,F160 N/A

17/18/19 LG1 N7 F17,..,F161/F18,..,F162/F19,..,F163 N/A

20/21/22 LG1 N8 F20,..,F164/F21,..,F165/F22,..,F166 N/A

23/24 LG1 N9 F23,..,F167/F24,..,F168 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/3	LG1	N1	F1,..,F145/F2,..,F146/F3,..,F147	N/A
4/5/6	LG1	N2	F4,..,F148/F5,..,F149/F6,..,F150	N/A
7/8	LG1	N3	F7,..,F151/F8,..,F152	N/A
9/10/11	LG1	N4	F9,..,F153/F10,..,F154/F11,..,F155	N/A
12/13/14	LG1	N5	F12,..,F156/F13,..,F157/F14,..,F158	N/A
15/16	LG1	N6	F15,..,F159/F16,..,F160	N/A
17/18/19	LG1	N7	F17,..,F161/F18,..,F162/F19,..,F163	N/A
20/21/22	LG1	N8	F20,..,F164/F21,..,F165/F22,..,F166	N/A
23/24	LG1	N9	F23,..,F167/F24,..,F168	N/A

Other Notes

IGNORE_KERNEL_PREEMPTION=1
ncsize=1048576
bufhwm=1048576
nfs:nfs3_max_transfer_size=65536
Only 100baseT ports of SunSwitch are used

Mon Oct 26 15:26:19 1998

LG Type	LG1
LG Model	Ultra1-170
Number and Type Processors	1 167MHz UltraSPARC
Memory Size	128MB
Operating System	Solaris 2.6
Compiler	SC3.0
Compiler Options	N/A
Network Type	SunSwift 100baseT f/w SCSI SBus Adapter
