SPECsfs97.v3 Result

Sun Microsystems Inc. :Sun Enterprise 6500
SPECsfs97.v3 =17542 Ops/Sec (Overall Response Time = 4.36 msec)

Performance

Throughput
(ops/sec)		 Response
(msec)
17202.8
34493.4
51963.7
69214.0
85694.4
103524.4
119724.6
137976.0
156455.6
172717.1
1754216.0

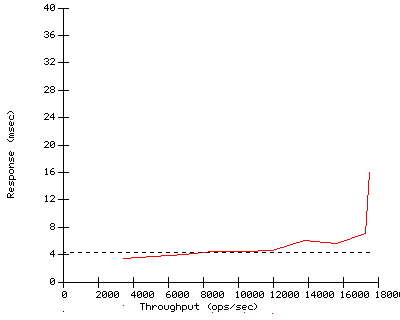

 Performance Graph

Configuration

Server Configuration and Availability
Vendor Sun Microsystems Inc.
Hardware Available Mar 1998
Software AvailableOct 1998
Date TestedSep 1998
SFS License Number6
Licensee LocationsPalo Alto, CA

CPU, Memory and Power
Model Name Sun Enterprise 6500
Processor 336 MHz UltraSPARC II
# of Processors 18
Primary Cache 16KBI+16KBD on chip
Secondary Cache 4MB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 12 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionSolaris7_64bit
Other Software N/A
File System UFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 599
Fileset Size 169.9 GB
Network Subsystem
Network Type 100Mbit Sun FastEthernet
Network Controller Desc. SunSwift 100baseT f/w SCSI SBus Adapter
Number Networks 16 (N1-N16)
Number Network Controllers16
Protocol Type UDP

Switch Type 12 SunSwitch
Bridge Type N/A
Hub Type 4 100baseT hub
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 9
Number of Disks 244
Number of Filesystems 240 (F1-F240)
File System Creation Opsdefault
File System Config default

Disk Controller On-board SCSI-2
# of Controller Type 1
Number of Disks 4
Disk Type 2GB 7200rpm
File Systems on Disks OS, swap
Special Config Notes

Disk Controller FC SBUS Adapter (FC25/S)/FC Optical Module (FC25/OM)
# of Controller Type 8
Number of Disks 240
Disk Type 2GB 7200rpm
File Systems on Disks F(i+1)-F(i+30), i=0,30,..,210
Special Config Notes SPARCstorage Array 112 each w/ 30 drives

Load Generator (LG) Configuration
Number of Load Generators 48
Number of Processes per LG5
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model Ultra1-170
Number and Type Processors1 167MHz UltraSPARC
Memory Size 128MB
Operating System Solaris 2.6
Compiler SC3.0
Compiler Options N/A
Network Type SunSwift 100baseT f/w SCSI SBus Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/3/4LG1N1 (switch)F1,..,F193/F2,..,F194/F3,..,F195/F4,..F196N/A
5/6/7LG1N2 (switch)F5,..,F197/F6,..,F198/F7,..,F199N/A
8/9/10LG1N3 (switch)F8,..,F200/F9,..,F201/F10,..,F202N/A
11/12LG1N4 (hub)F11,..,F203/F12,..,F204N/A
13/14/15/16LG1N5 (switch)F13,..,F205/F14,..,F206/F15,..,F207/F16,..,F208N/A
17/18/19LG1N6 (switch)F17,..,F209/F18,..,F210/F19,..,F211N/A
20/21/22LG1N7 (switch)F20,..,F212/F21,..,F213/F22,..,F214N/A
23/24LG1N8 (hub)F23,..,F215/F24,..,F216N/A
25/26/27/28LG1N9 (switch)F25,..,F217/F26,..,F218/F27,..,F219/F28,..,F220N/A
29/30/31LG1N10 (switch)F29,..,F221/F30,..,F222/F31,..,F223N/A
32/33/34LG1N11 (switch)F32,..,F224/F33,..,F225/F34,..,F226N/A
35/36LG1N12 (hub)F35,..,F227/F36,..,F228N/A
37/38/39/40LG1N13 (switch)F37,..,F229/F38,..,F230/F39,..,F231/F40,..,F232N/A
41/42/43LG1N14 (switch)F41,..,F233/F42,..,F234/F43,..,F235N/A
44/45/46LG1N15 (switch)F44,..,F236/F45,..,F237/F46,..,F238N/A
47/48LG1N16 (hub)F47,..,F239/F48,..,F240N/A

Other Notes

Mon Oct 26 15:27:15 1998
