SPECsfs97.v3 Result

Network Appliance, Inc. :	NetApp F760 Cluster (UDP, 42x18GB FCAL, 4xGbE)
SPECsfs97.v3 =	8030 Ops/Sec (Overall Response Time = 3.16 msec)

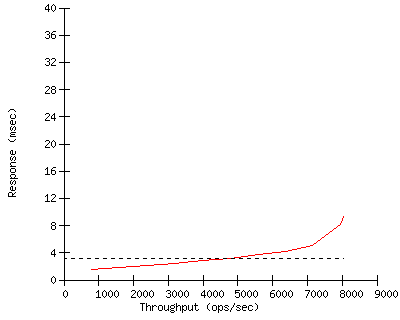

Performance

Throughput (ops/sec)	Response (msec)
802	1.6
1596	1.9
2388	2.1
3176	2.4
3977	2.8
4787	3.2
5593	3.7
6368	4.2
7152	5.1
7951	8.1
8006	8.9
8030	9.3

Configuration

Server Configuration and Availability
Vendor	Network Appliance, Inc.
Hardware Available	December 1998
Software Available	April 1999
Date Tested	March 1999
SFS License Number	33
Licensee Locations	Santa Clara, CA

CPU, Memory and Power

Model Name NetApp F760 Cluster (UDP, 42x18GB FCAL, 4xGbE)

Processor 600MHz Alpha 21164A

# of Processors 2 (1 per node)

Primary Cache 8 KB I + 8 KB D on-chip

Secondary Cache 96 KB (I+D) on-chip

Other Cache 2 MB (I+D) off-chip per node

UPS none

Other Hardware X1900A cluster interconnect (see notes)

Memory Size 2 GB (1 GB per node)

NVRAM Size 64 MB (32 MB per node)

NVRAM Type SIMMs on PCI cards

NVRAM Description 6-month battery-backed shelf-life

Server Software

OS Name and Version Data ONTAP 5.3

Other Software Cluster Option

File System WAFL

NFS version 3

Server Tuning

Buffer Cache Size dynamic

# NFS Processes 0

Fileset Size 79.3 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	X1025A PCI adapter card
Number Networks	2 (N1,N2)
Number Network Controllers	4 live + 4 standby
Protocol Type	UDP

Switch Type Extreme Summit4, all ports FDX

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4

Number of Disks 42 (6x7-disk JBOD shelves)

Number of Filesystems 2

File System Creation Ops default

File System Config one RAID-group of 21 disks per file-system

Disk Controller onboard FCAL adapter

# of Controller Type 2

Number of Disks 42

Disk Type 18GB Seagate Cheetah (ST118202FC)

File Systems on Disks F1,F2

Special Config Notes primary loops (see notes)

Disk Controller FCAL 32-bit PCI adapter card

# of Controller Type 2

Number of Disks 42

Disk Type 18GB Seagate Cheetah (ST118202FC)

File Systems on Disks F1,F2

Special Config Notes secondary loops (not used for data during test; see notes)

Load Generator (LG) Configuration
Number of Load Generators	6
Number of Processes per LG	12
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Sun Microsystems Ultra 1/170

Number and Type Processors 1x167-MHz UltraSPARC

Memory Size 256 MB

Operating System Solaris 2.5.1

Compiler gcc 2.6.3

Compiler Options see SPEC-supplied wrapper & makefile

Network Type hme

LG Type LG2

LG Model Sun Microsystems Ultra 1/170

Number and Type Processors 1x167-MHz UltraSPARC

Memory Size 256 MB

Operating System Solaris 2.6

Compiler gcc 2.6.3

Compiler Options see SPEC-supplied wrapper & makefile

Network Type hme

LG Type LG3

LG Model Sun Microsystems Ultra 2

Number and Type Processors 1x296-MHz UltraSPARC

Memory Size 256 MB

Operating System Solaris 2.6

Compiler gcc 2.6.3

Compiler Options see SPEC-supplied wrapper & makefile

Network Type hme

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1,F2 N/A

2,3 LG3 N1 F1,F2 N/A

4,5 LG1 N2 F1,F2 N/A

6 LG2 N2 F1,F2 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1,F2	N/A
2,3	LG3	N1	F1,F2	N/A
4,5	LG1	N2	F1,F2	N/A
6	LG2	N2	F1,F2	N/A

Other Notes

NetApp's embedded operating system processes NFS requests from the network layer without any NFS daemons, and uses non-volatile memory to improve performance.
Each filesystem was composed of one RAID-group, containing 20 data disks and one parity disk.
Server tunings:
options nosnap 1 -- disable periodic Snapshot creation, for reproducibility
options nosnapdir 1 -- skip .snapshot entry when reading directories
options raid.scrub.enable off -- disable periodic RAID scrubs, for reproducibility
options minra 1 -- minimize file read-ahead
options udp_lg_dgram.xmit_cksum.offload 1 -- offload checksum computations to NICs
The tested system was a failover cluster comprised of two nodes joined by a cluster interconnect.
Each node was the owner of one filesystem, but the disks were dual-attached so that, in the event of a fault, they could be controlled by the other node using a secondary loop.
Each filesystem was on a distinct pair of FCAL loops.
Each node had two connections to each network, one of which was standing by in readiness for a takeover.
The cluster option was licensed and enabled.
"Data ONTAP", "Network Appliance", "Snapshot", and "WAFL" are trademarks of Network Appliance, Inc.
"NetApp" is a registered tradmark of Network Appliance, Inc.

Thu Aug 26 15:19:03 1999

LG Type	LG1
LG Model	Sun Microsystems Ultra 1/170
Number and Type Processors	1x167-MHz UltraSPARC
Memory Size	256 MB
Operating System	Solaris 2.5.1
Compiler	gcc 2.6.3
Compiler Options	see SPEC-supplied wrapper & makefile
Network Type	hme

LG Type	LG3
LG Model	Sun Microsystems Ultra 2
Number and Type Processors	1x296-MHz UltraSPARC
Memory Size	256 MB
Operating System	Solaris 2.6
Compiler	gcc 2.6.3
Compiler Options	see SPEC-supplied wrapper & makefile
Network Type	hme
