SPECpower_ssj2008
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkEdge SE100 | SPECpower_ssj2008 = 15,019 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Apr 30, 2025 |
| Hardware Availability: | May-2025 | Software Availability: | Sep-2024 | Publication: | May 20, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

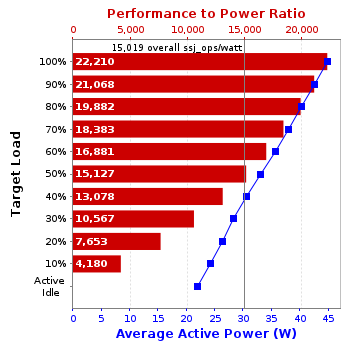

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 996,616 | 44.9 | 22,210 |
| 90% | 89.6% | 897,845 | 42.6 | 21,068 |
| 80% | 80.0% | 801,795 | 40.3 | 19,882 |
| 70% | 69.6% | 697,684 | 38.0 | 18,383 |
| 60% | 60.2% | 603,015 | 35.7 | 16,881 |
| 50% | 50.0% | 501,174 | 33.1 | 15,127 |
| 40% | 39.9% | 399,867 | 30.6 | 13,078 |
| 30% | 29.9% | 299,427 | 28.3 | 10,567 |
| 20% | 20.1% | 201,690 | 26.4 | 7,653 |
| 10% | 10.2% | 101,742 | 24.3 | 4,180 |
| Active Idle | 0 | 22.0 | 0 | |
| ∑ssj_ops / ∑power = | 15,019 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | 'SUT' |
| Hardware | |
|---|---|
| Hardware Vendor: | Lenovo Global Technology |
| Model: | ThinkEdge SE100 |
| Form Factor: | 1U |
| CPU Name: | Intel Core Ultra 7 255H |
| CPU Characteristics: | 16 Core, 2.0GHz, 24MB L3 Cache |
| CPU Frequency (MHz): | 2000 |
| CPU(s) Enabled: | 16 cores, 1 chip, 16 cores/chip |
| Hardware Threads: | 16 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 64 KB I + 48 KB D on chip per core |
| Secondary Cache: | 3 MB I+D on chip per core |
| Tertiary Cache: | 24 MB I+D off chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 2 x 8192 MB |
| Memory Details: | 8GB 1Rx16 PC5-6400B; slots 1 and 2 populated |
| Power Supply Quantity and Rating (W): | 1 x 140 |
| Power Supply Details: | Lenovo P/N:4X27A92699 |
| Disk Drive: | 1 x 240GB M.2 SSD P/N:4XB7A89422 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x 1GbE RJ45 |
| NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows 11 Enterprise |
| OS Version: | Version 24H2(OS Build 26100.1742) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10 |
| JVM Command-line Options: | -server -Xmn900m -Xms1024m -Xmx1024m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210 |
| JVM Affinity: | start /NODE [0] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1024 |
| JVM Maximum Heap (MB): | 1024 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | DZE103U |
| Management Firmware Version: | DZX311C |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | KB5043080 |
| Hardware | |
|---|---|
| Hardware Vendor: | Lenovo Global Technology |
| Model: | ThinkSystem SR650 |
| CPU Description: | 2 x Intel Xeon Gold 5218 |
| Memory amount (GB): | 768 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.2268) |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UG05013E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB |
| Calibration Label: | 1GA24011968-0001 |
| Date of Calibration: | 25-Sep-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 44.9 | 22.7 |
| 90% | 42.6 | 22.6 |
| 80% | 40.3 | 22.6 |
| 70% | 38.0 | 22.6 |
| 60% | 35.7 | 22.8 |
| 50% | 33.1 | 22.9 |
| 40% | 30.6 | 23.0 |
| 30% | 28.3 | 23.2 |
| 20% | 26.4 | 23.4 |
| 10% | 24.3 | 23.6 |
| Active Idle | 22.0 | 23.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 50 Hz / 1 phase / 2 wires | 22.6 | 43 |

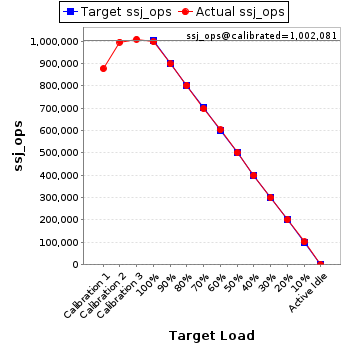

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 876,397 | ||
| Calibration 2 | 995,834 | ||
| Calibration 3 | 1,008,327 | ||
| ssj_ops@calibrated=1,002,081 | |||
| 100% | 99.5% | 1,002,081 | 996,616 |
| 90% | 89.6% | 901,873 | 897,845 |
| 80% | 80.0% | 801,664 | 801,795 |
| 70% | 69.6% | 701,456 | 697,684 |
| 60% | 60.2% | 601,248 | 603,015 |
| 50% | 50.0% | 501,040 | 501,174 |
| 40% | 39.9% | 400,832 | 399,867 |
| 30% | 29.9% | 300,624 | 299,427 |
| 20% | 20.1% | 200,416 | 201,690 |
| 10% | 10.2% | 100,208 | 101,742 |
| Active Idle | 0 | 0 | |
